Repair Information 4-13
WARNING: When removing the charge roll assembly, avoid touching the charge roll surface.
1. Open the MPF door assembly.
2. Open the operator panel front cover assembly.

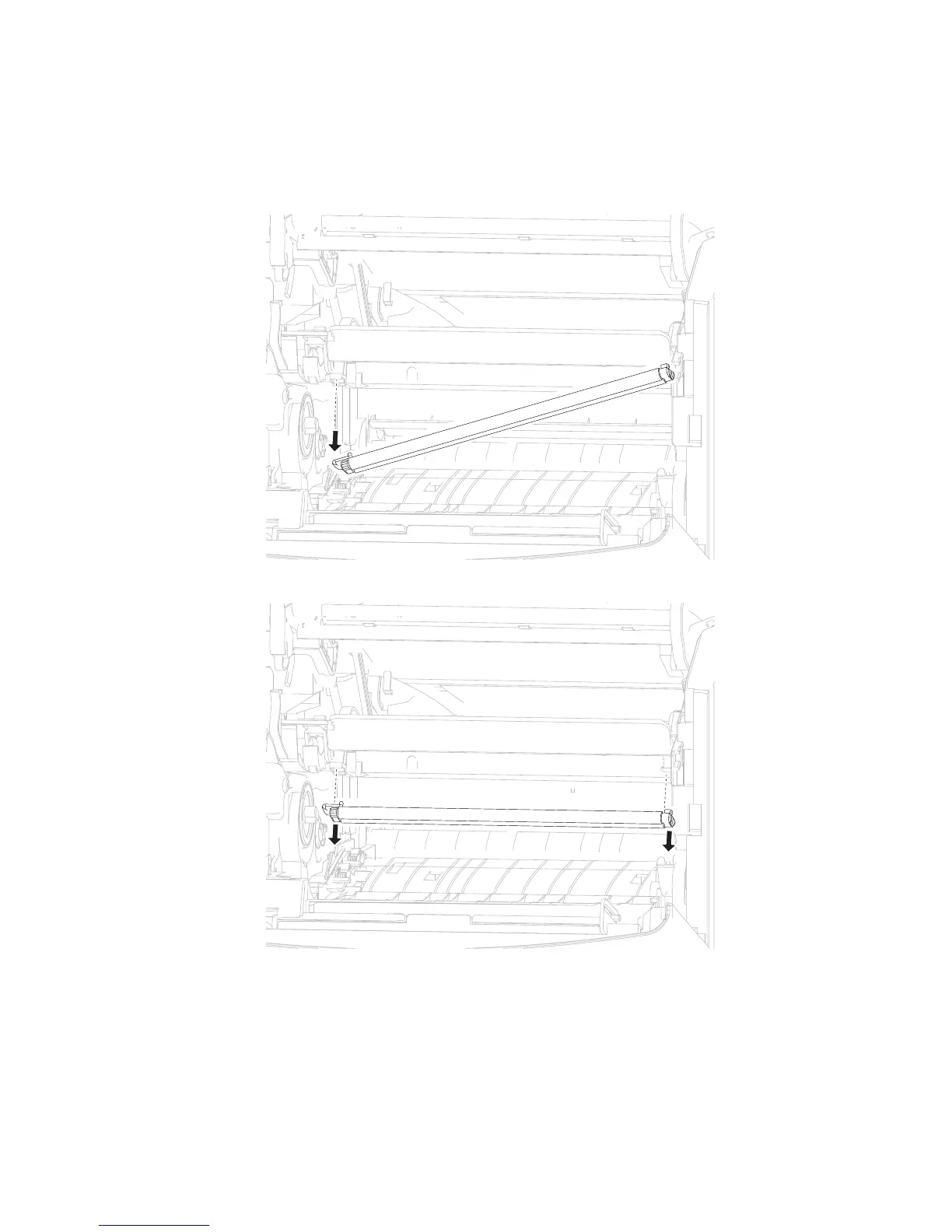

3. Detach the left side of the charge roll assembly from the machine.
4. Detach the right side of the charge roll assembly from the machine.
5. Remove the charge roll assembly.
Replacement Warning: When replacing the charge roll assembly, avoid touching the charge roll surface.
