Diagnostic aids 3-107

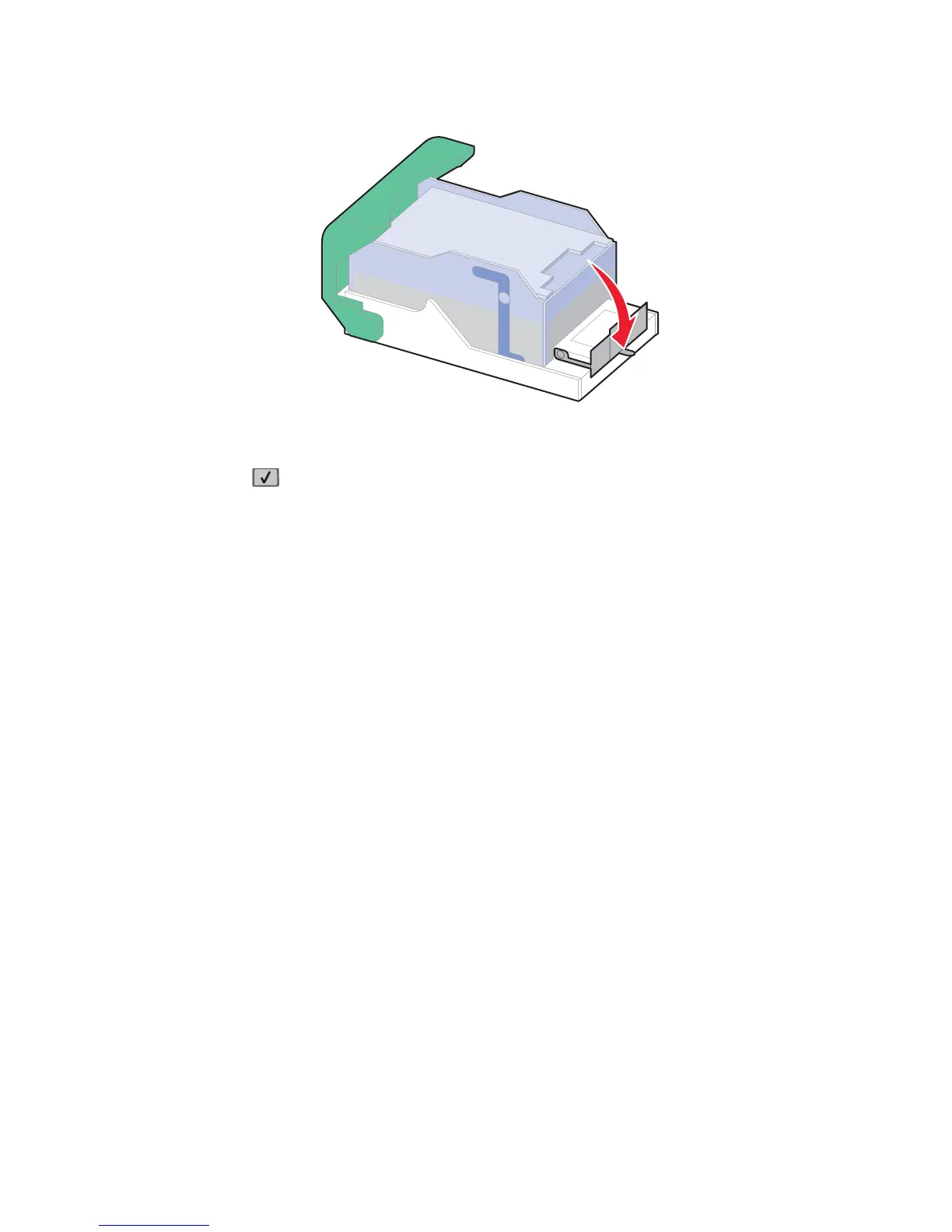

4. Press down on the staple guard until it snaps into place.

5. Push the cartridge holder firmly back into the stapler unit until the cartridge holder clicks into place.

6. Close the stapler door.

7. Press .
