4-8 Service Manual

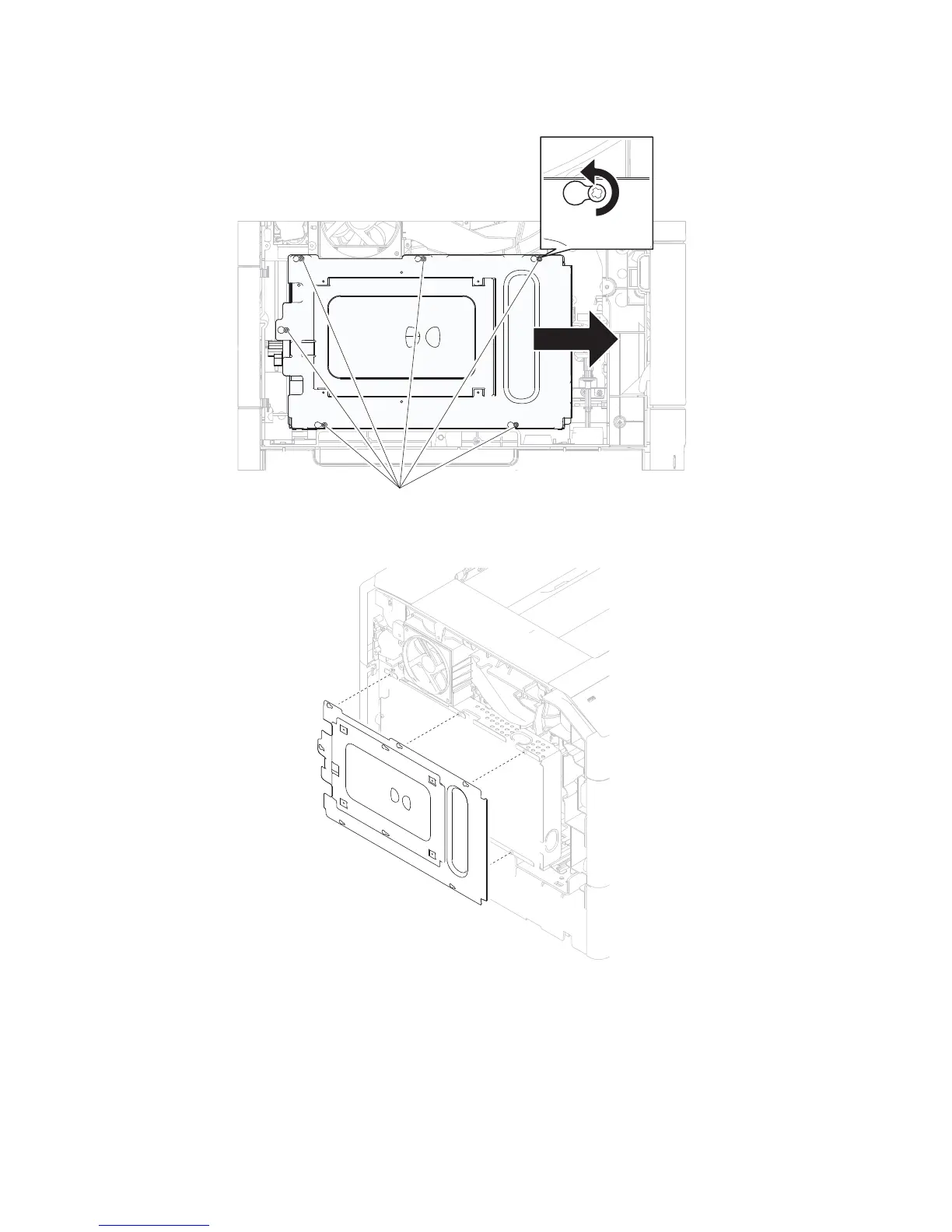

2. Remove the six screws (A) securing the metal cover to the machine.

3. Remove the metal cover.

4. Remove the inner deflector. Go to “Inner deflector removal” on page 4-24.

5. Remove the MPF pick solenoid assembly. Go to “MPF pick solenoid assembly removal” on page 4-38.

A
