Repair Information 4-15

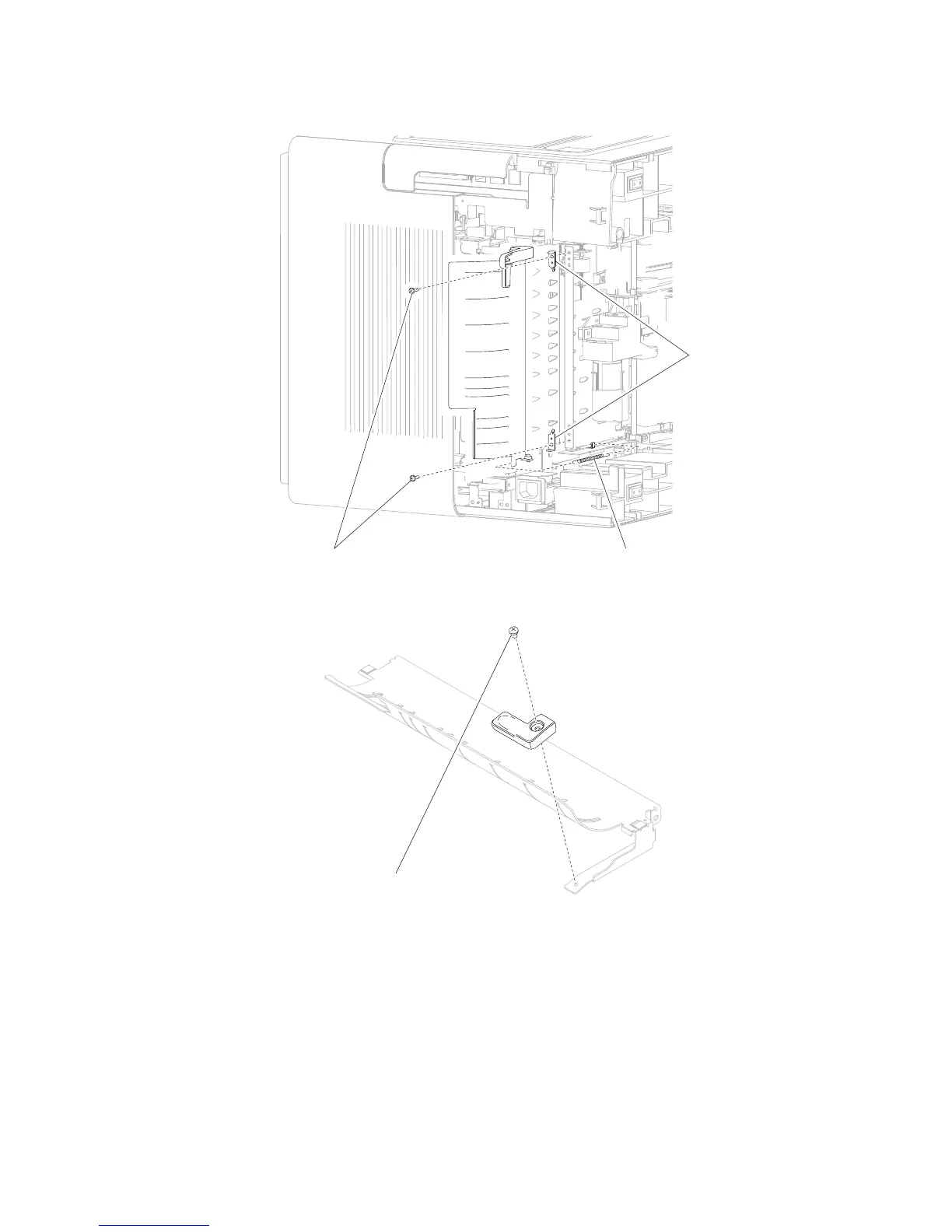

6. Detach the rear duplex guide spring (C).

7. Remove the duplex guide assembly, rear.

8. Remove the screw (D) securing the rear duplex guide handle to the assembly.

9. Remove the duplex guide assembly, rear.

A

B

C

D
