Repair Information 4-41

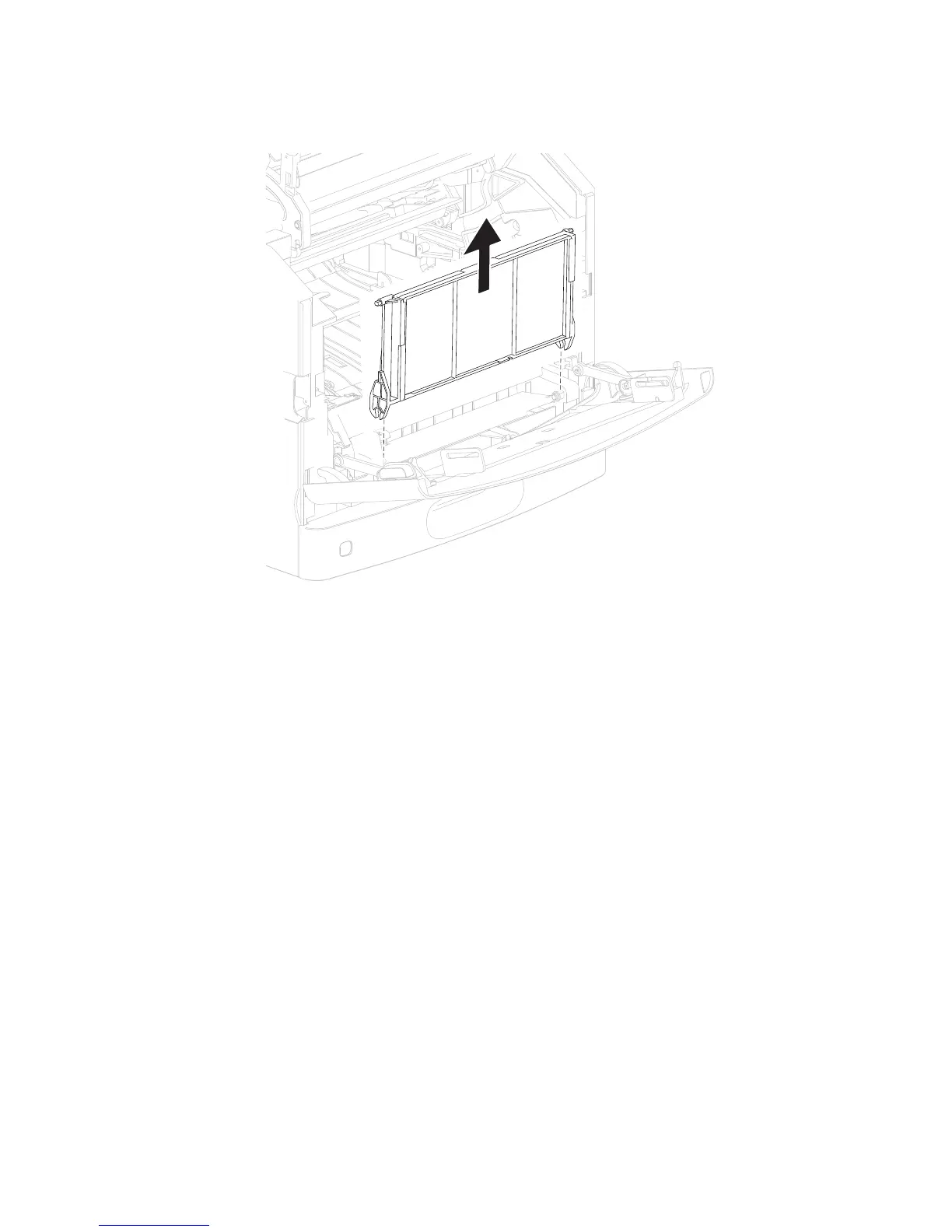

4. While holding the MPF tray in its uppermost position, swing the MPF tray door assembly away from the

machine to detach the MPF tray from the machine.
