4-44 Service Manual

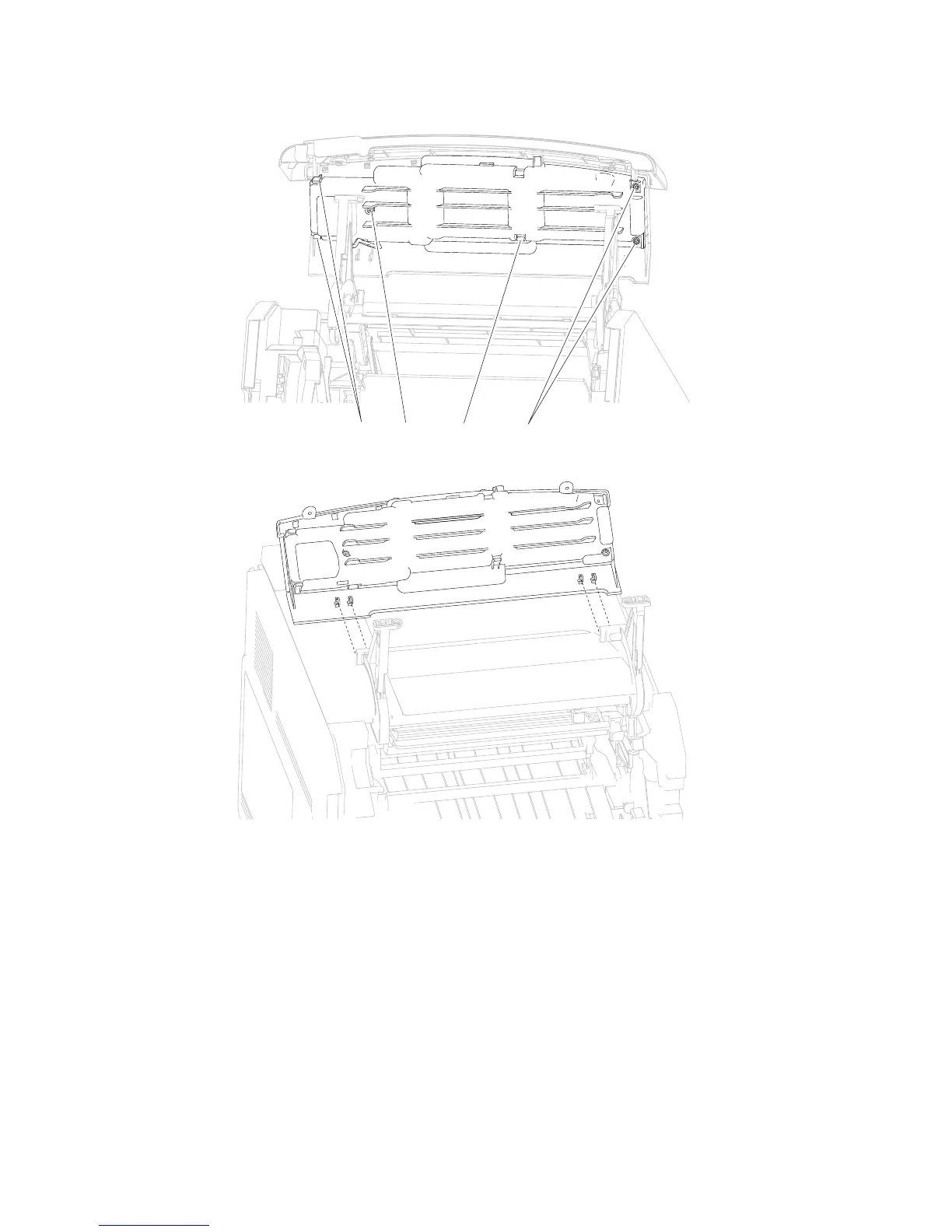

3. Release the three hooks (B) securing the cover to the assembly.

4. Detach the operator panel door assembly from the machine.

5. Remove the black plastic cover.

6. Remove the two screws (C) securing the USB socket to the assembly.

7. Remove the USB socket.
