Repair Information 4-113

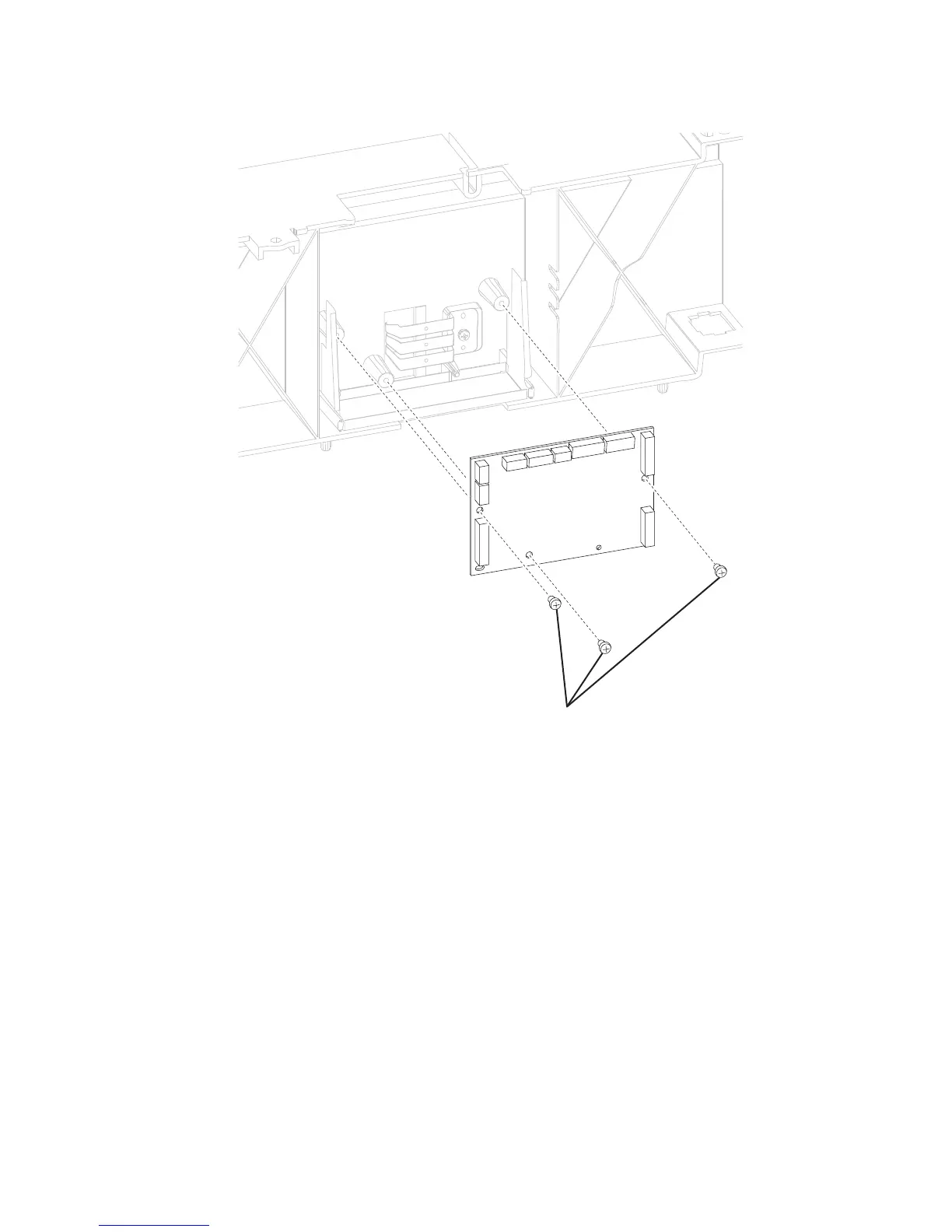

3. Remove the three screws (A) securing the 550-sheet controller card assembly to the 550-sheet frame.

4. Remove the 550-sheet controller card assembly.

A
