4-150 Service Manual

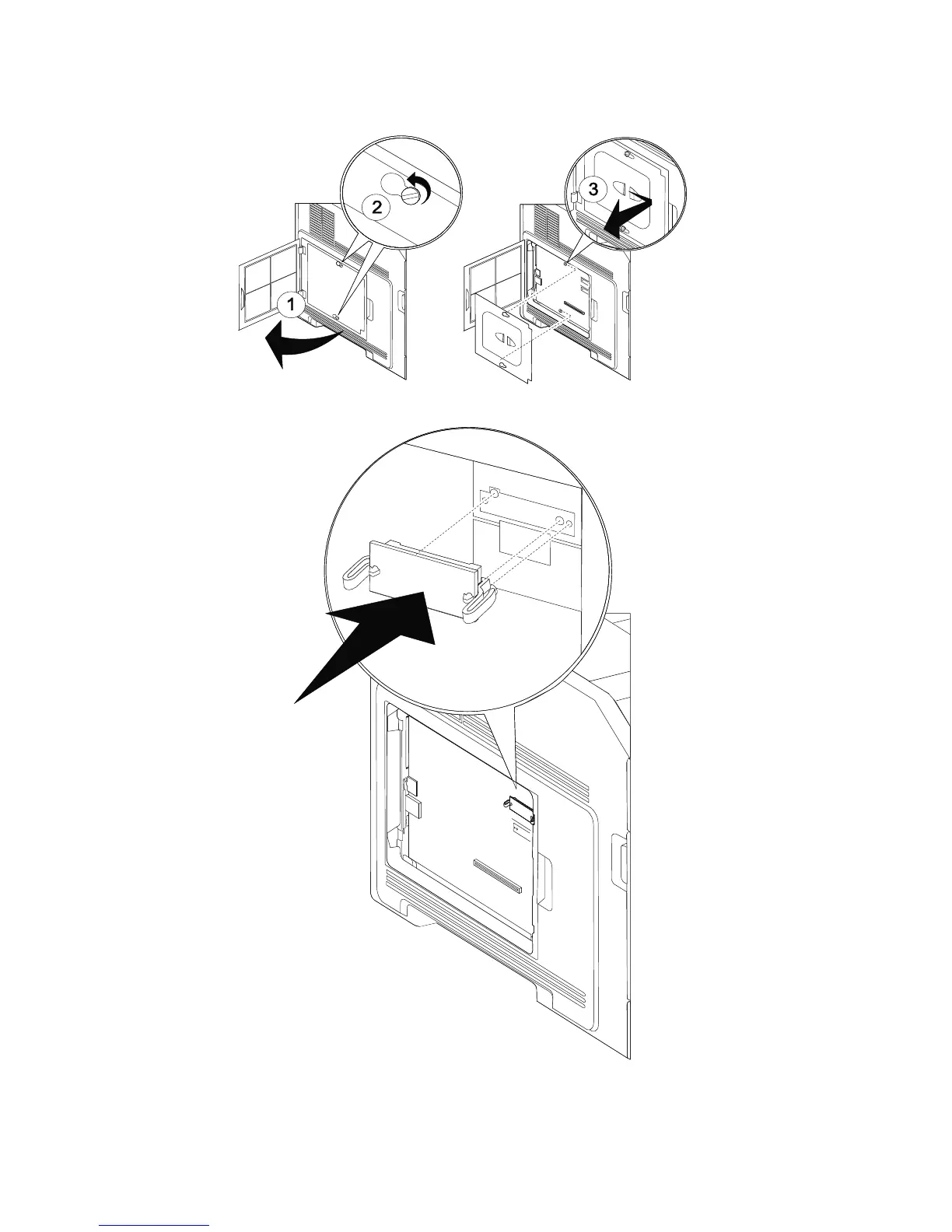

3. Open the system board door, and loosen the screw on the system board cover. Remove the cover.

4. Install the firmware card into the system board.
