4-152 Service Manual

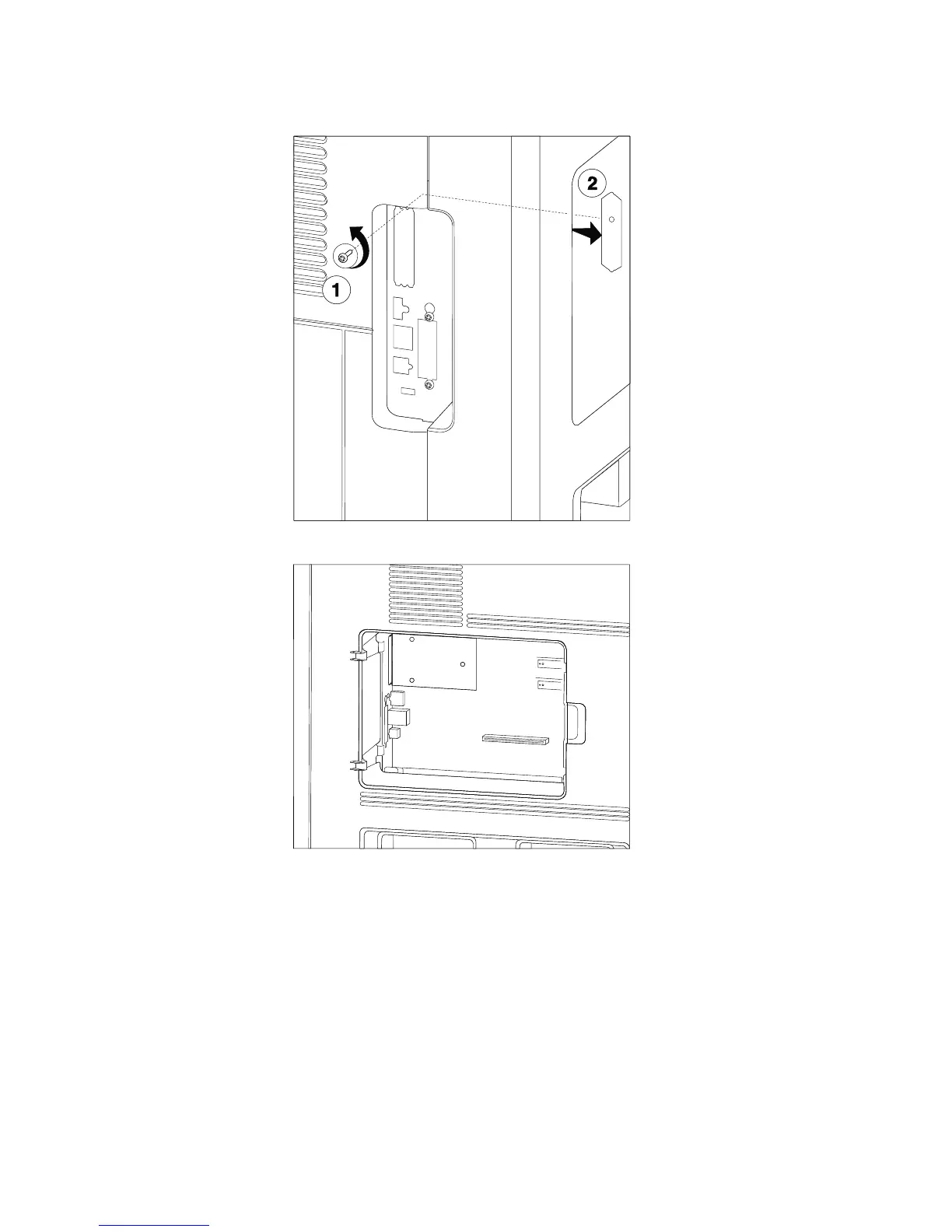

6. Remove the metal cover from the system card opening.

7. Locate the interface card mounting area on the system board.
