Repair Information 4-161

1. Remove the media tray catch spring. Go to “Media tray catch spring removal” on page 4-160.

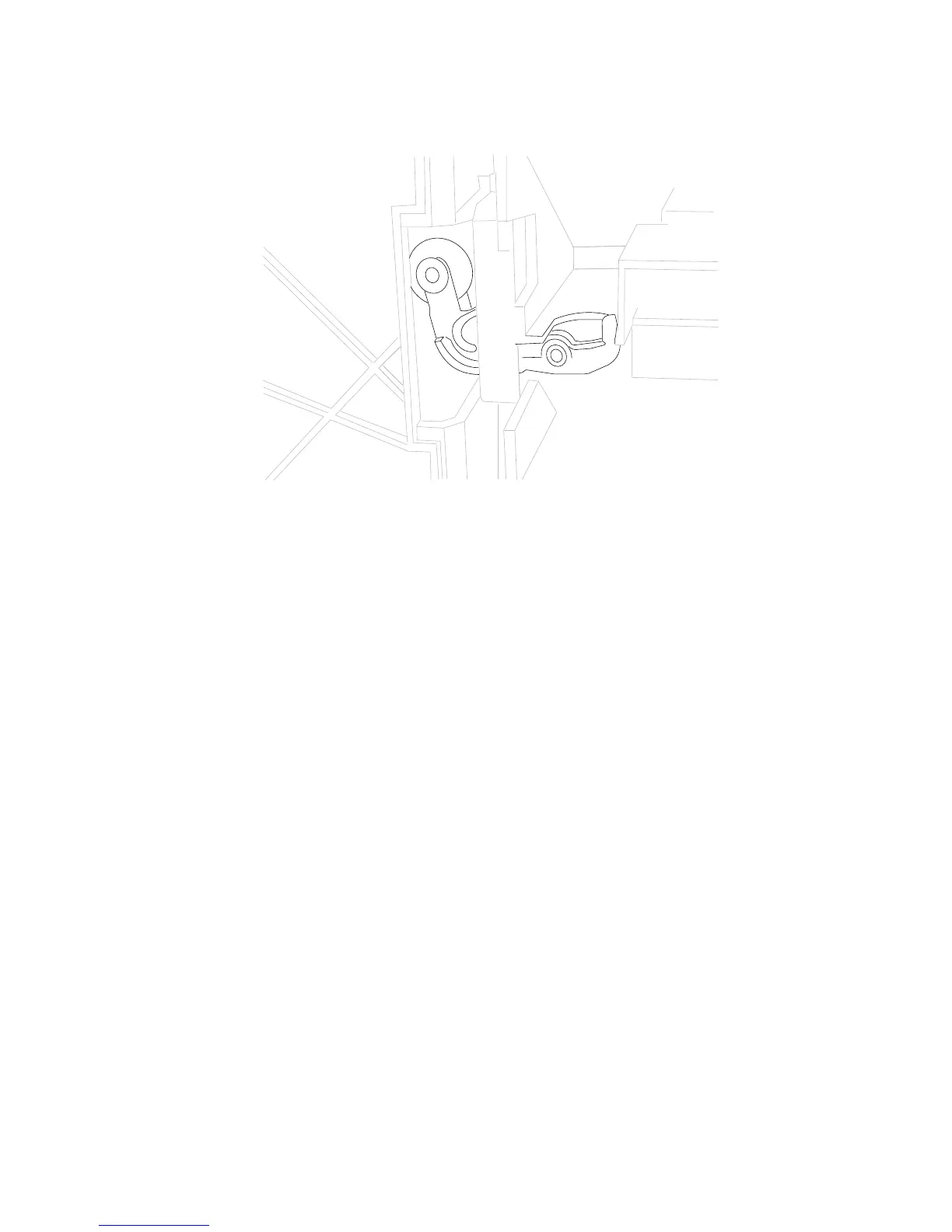

2. Remove the tray roller catch assembly from the drawer.
