4-194 Service Manual

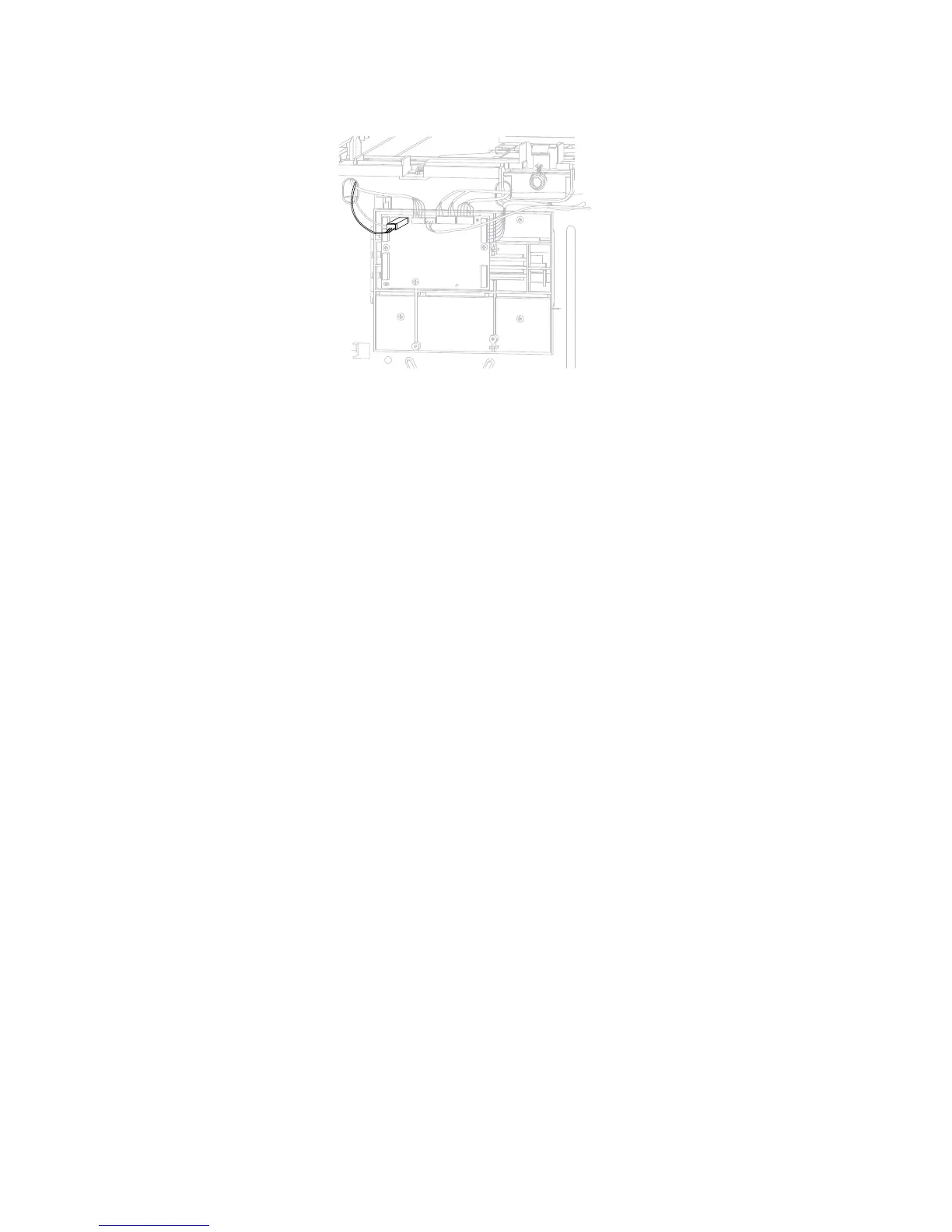

2. Disconnect the sensor (HCIT tray raised HP) cable connector from the HCIT controller card assembly.

Note: Remove the cable from the restraints, and observe the routing for reinstallation.
