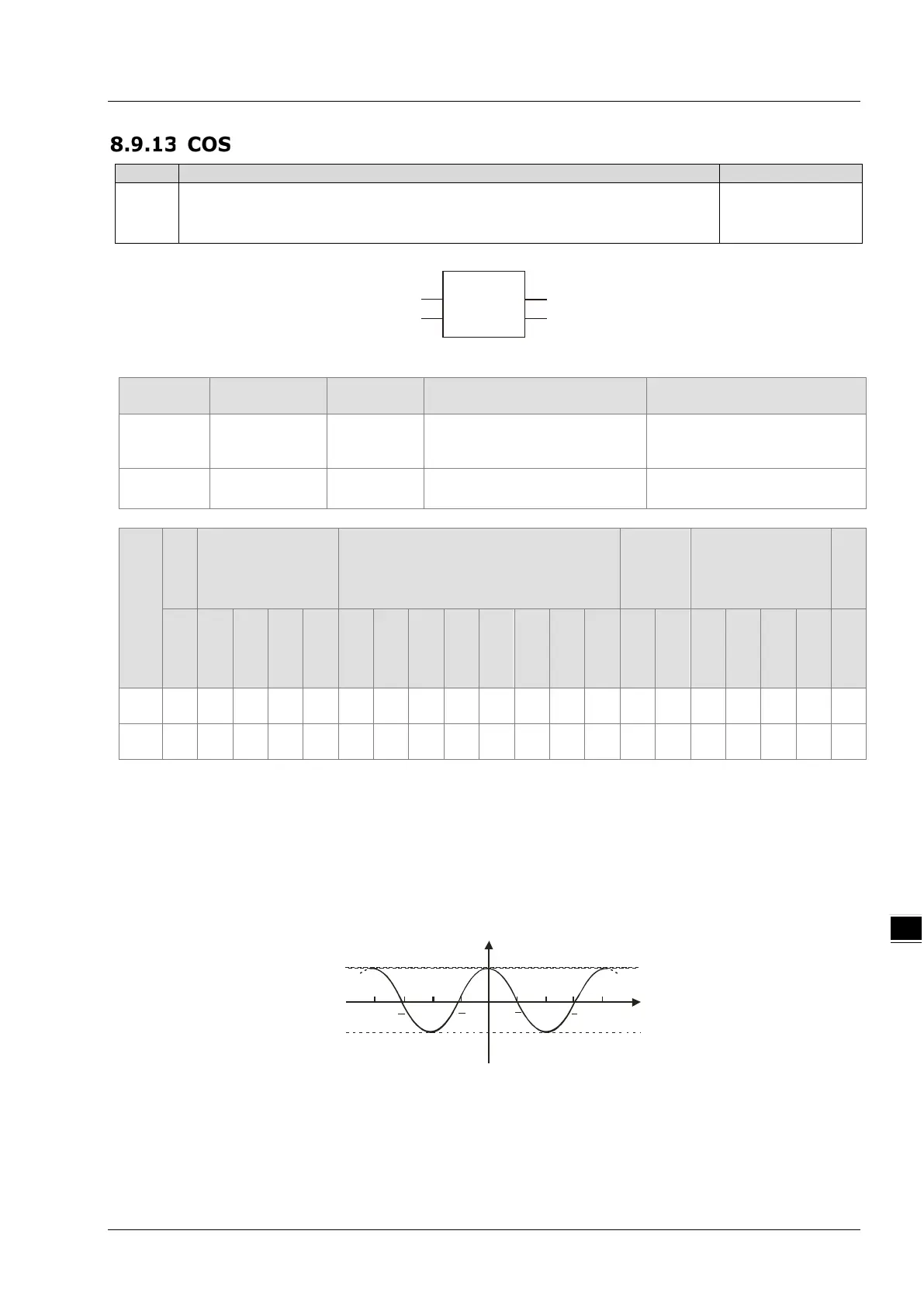

Chapter 8 Logic Instructions
8-89
8_
FB/FC
Explanation
Applicable model
FC
COS is used to get the cosine of a number and the result is output to Out.
The unit of In is radian.
DVP15MC11T
DVP15MC11T-06
 Parameters
Parameter
name
Meaning
Input/
Output
Description Valid range
In
Radians to
process
Input Radians to process
Depends on the data type of
the variable that the input
parameter is connected to.
Out
Operation
result
Output Operation result
-1.00000000000000~
1.00000000000000
Boolean
Bit string Integer
Real
number
Time, date
String
BOOL
BYTE
WORD
DWORD
LWORD
USINT
UINT
UDINT
ULINT
SINT
INT
DINT
LINT
REAL
LREAL
TIME
DATE
TOD
DT
STRING
In
● ● ● ● ● ● ● ● ● ● ● ● ● ●
Out
●
Note:
The symbol ● indicates that the parameter is allowed to connect to the variable or constant of the data
type.
 Function Explanation
 COS is used to calculate the cosine of the input parameter In and the result is output to Out.
 Users can choose different data types for the input parameter in this instruction. But the data type
of the output parameter is restricted to LREAL. An error will occur during the compiling of the
software if the data type of the output parameter is not LREAL.
COS
EN ENO
In Out
Out
In
-2
3
2
-2 2
3
2
22
-
1
-1
0
-
In : Angle ( ) in radians data
Out： Result Cosine( )
π π π
π π
π π π
