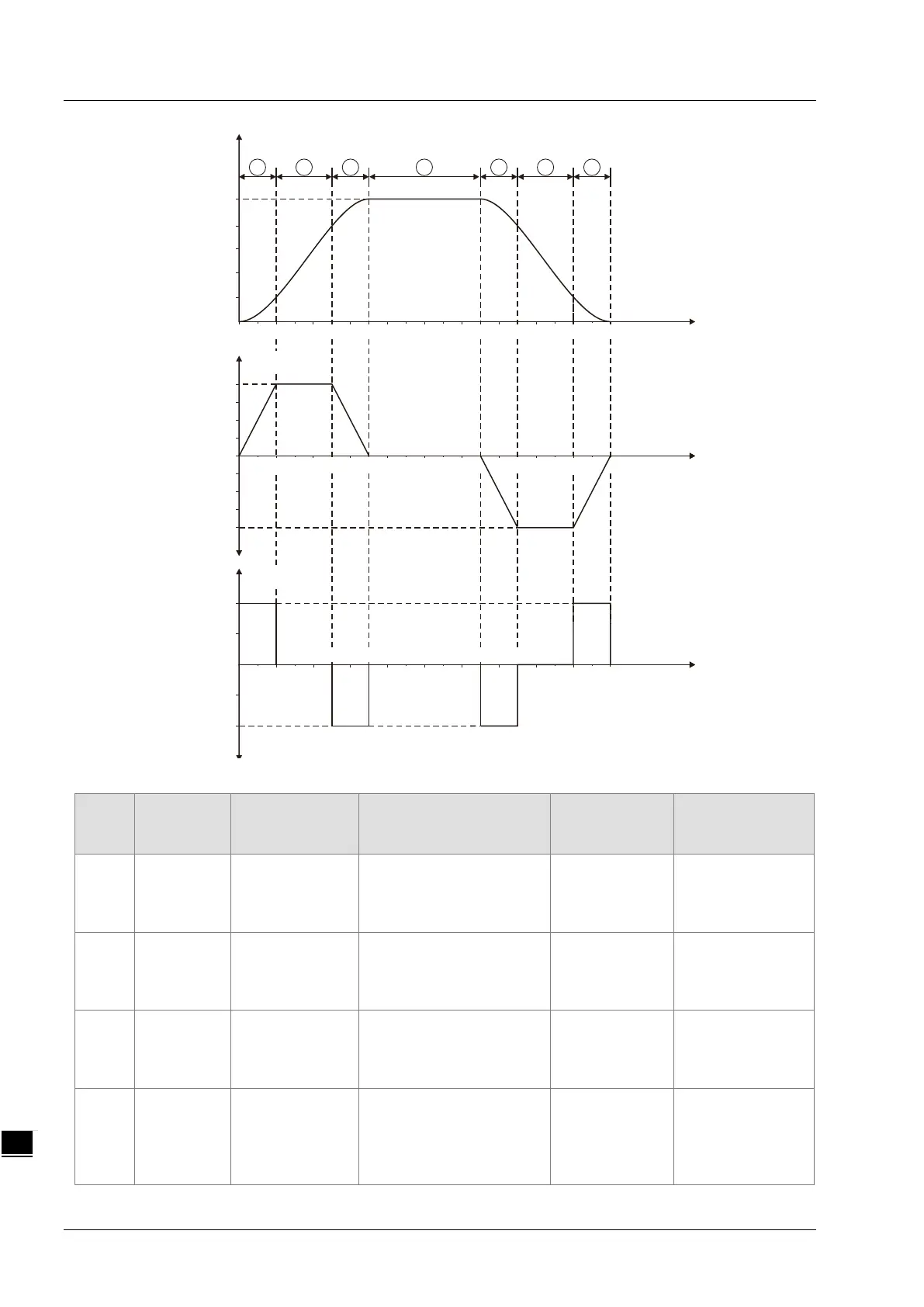

 The relations among Velocity, Acceleration and Jerk are explained in the following table.
Stage
No.
Time
(second)
Jerk
(Unit/second
3
)
Acceleration/
Deceleration
(Unit/second
2
)
Velocity
(Unit/second)
Motion type
1 0~2
10000
units/second
3
Acceleration is increased
to 20000 units/second
2
Increasing
The acceleration
motion with an
increasing
acceleration
2 2~5 0
Acceleration stays at
20000 units/second
2
Increasing
The acceleration
motion with a
constant
acceleration
3 5~7
-10000
units/second
3
Acceleration is
decreased to 0.
Increases to
100000
unit/second
The acceleration
motion with an
decreasing
acceleration
4 7~13 0
Acceleration has been
decreased to
0unit/second
2
and it has
been 0unit/second
2
during this stage.
100000
unit/second
The motion at a
constant speed
