Delta DVP-15MC Series User Manual

DVP-15MC Series Motion Controller Operation Manual
11-242
11
1

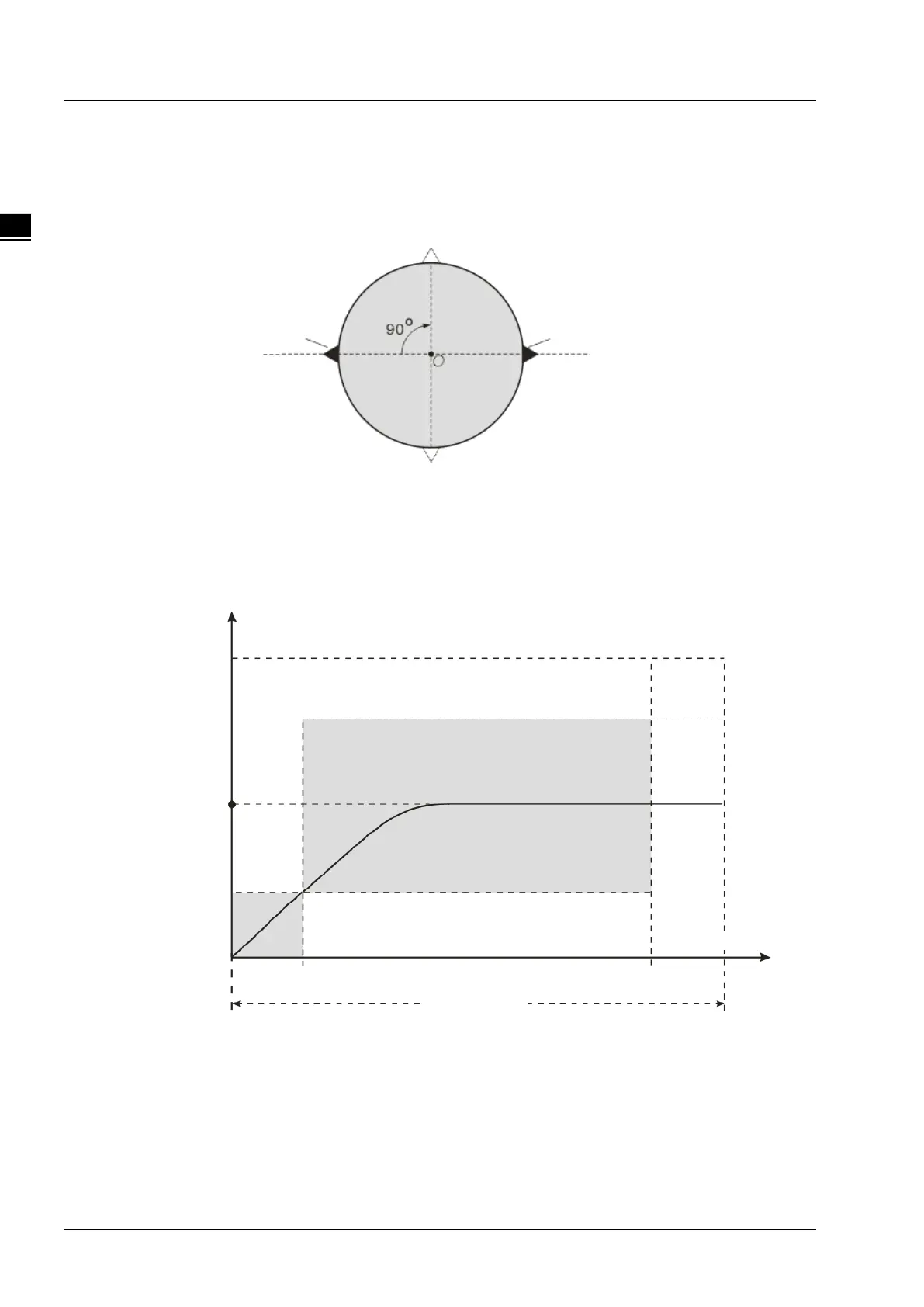

When the rotary roller is mounted with multiple knives, the distances between knives should be the
same and the cutting position is at the center of the distance between knives. See the two-knife figure
below.
5. The end curve
It is the rotary-cut curve when the rotary cut function is broken away.
After the instruction “APF_RotaryCut_Out” is started up, the system will use the curve to make the
rotary cut axis break away from the rotary cut state. Eventually, the knife stops at the end position as
shown in the figure above.
The end position is based on the rotary cut axis. For the single knife, the end position is the entry
position and it is also right above the rotary cut roller.
Rotarycut axis
Feed axis
Start of SYNC area
End of SYNC area
Adjustment area
SYNC area
End point
SYNC
area
Cutting length
Knife 1
Horizontal line
Knife 2
Cutting position
O
Cutting position
