 Relative mode example:
The initial positions of axis X, Y are both 10000 units and their axis parameters are both default
values. The G codes to be executed are:
N0 G91
N1 G0 X50000 Y100000
 After G codes are executed, the Y/X curve for the whole movement process is shown

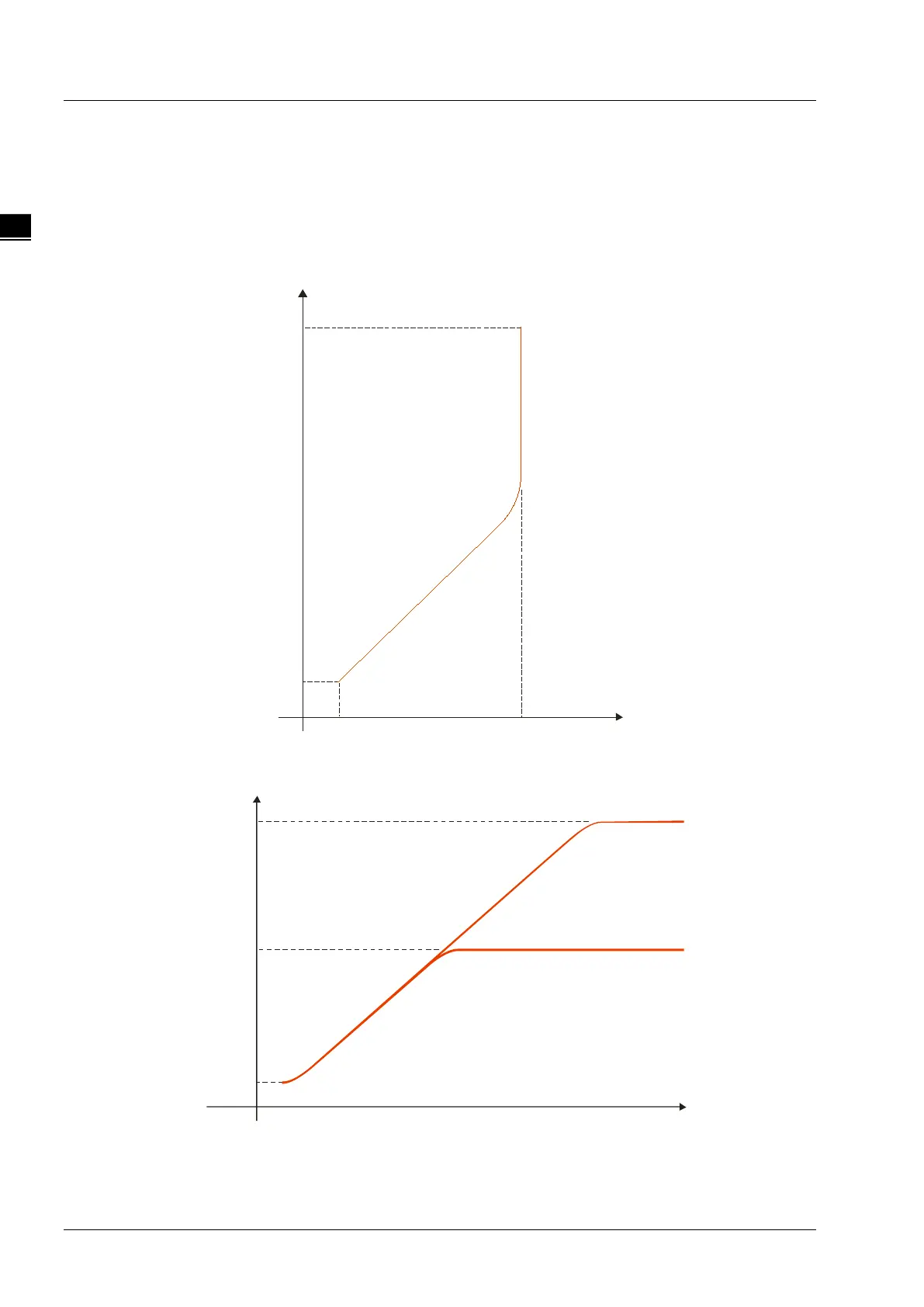

below:
O
X
Y
60000
110000
Position
Position
10000
10000
 After G codes are executed, the Position/Time curve for the whole movement process is
shown below:
O
Y
60000
110000
Position
t
X
10000
