Delta DVP-15MC Series User Manual

DVP-15MC Series Motion Controller Operation Manual
D-24
D
 Mode 30
Circumstance 1： MC_Home instruction is executed while the home switch is OFF and the axis starts to
move in the negative direction at the first-phase speed. When the home switch is ON,
the axis starts to move at the second-phase speed. Where the axis stands is the home
position when the home switch is OFF.
Circumstance 2： MC_Home instruction is executed while the home switch is ON and the axis moves in
the negative direction at the second-phase speed. Where the axis stands is the home
position when the home switch is OFF.
Circumstance 3： MC_Home instruction is executed while the home switch is OFF. The axis moves in
the negative direction at the first-phase speed. The motion direction changes and the
axis moves at the first-phase speed when the home switch is OFF and the negative
limit switch is ON. When the home switch is ON, the motion direction changes again
and the axis moves at the second-phase speed. Where the axis stands is the home
position when the home switch is OFF.

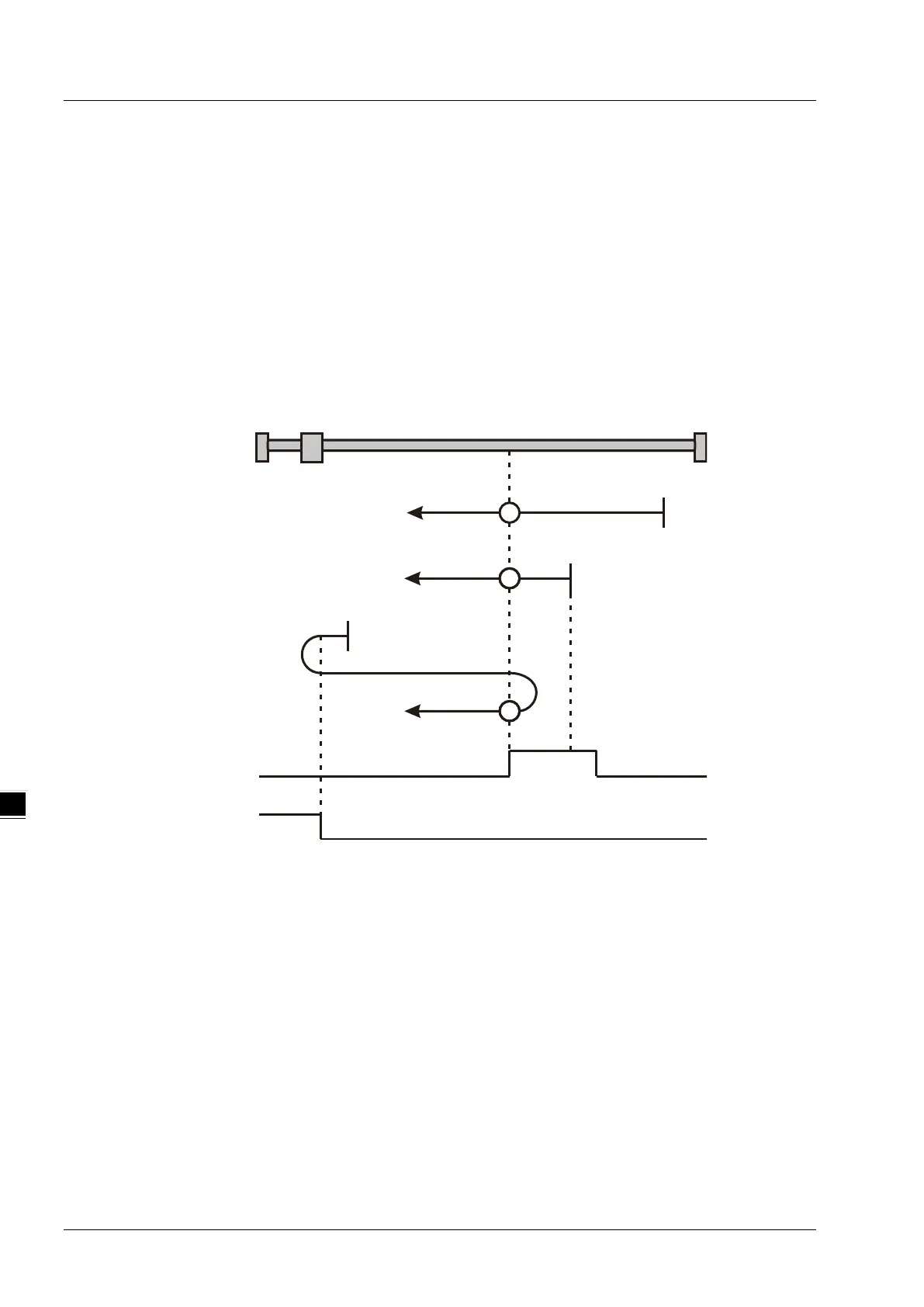

Homing depending on the home switch and negative limit switch (
○
30: mode 30)
Home
switch
Negative
limit switch
30
30
30
Circumstance 1
Circumstance 2
Circumstance 3
Start
point
Start
point
Start
point
Negative
direction
Negative
direction
Negative
direction
