NOTE Handle the cell gasket and the inside surfaces of the
cell carefully to prevent scratches which may
subsequently cause leaks.
6. Carefully separate the parts (see Figure 9-34).
7. Use tweezers to remove the old cell gasket (see Figure 9-35
) from the
cell body.

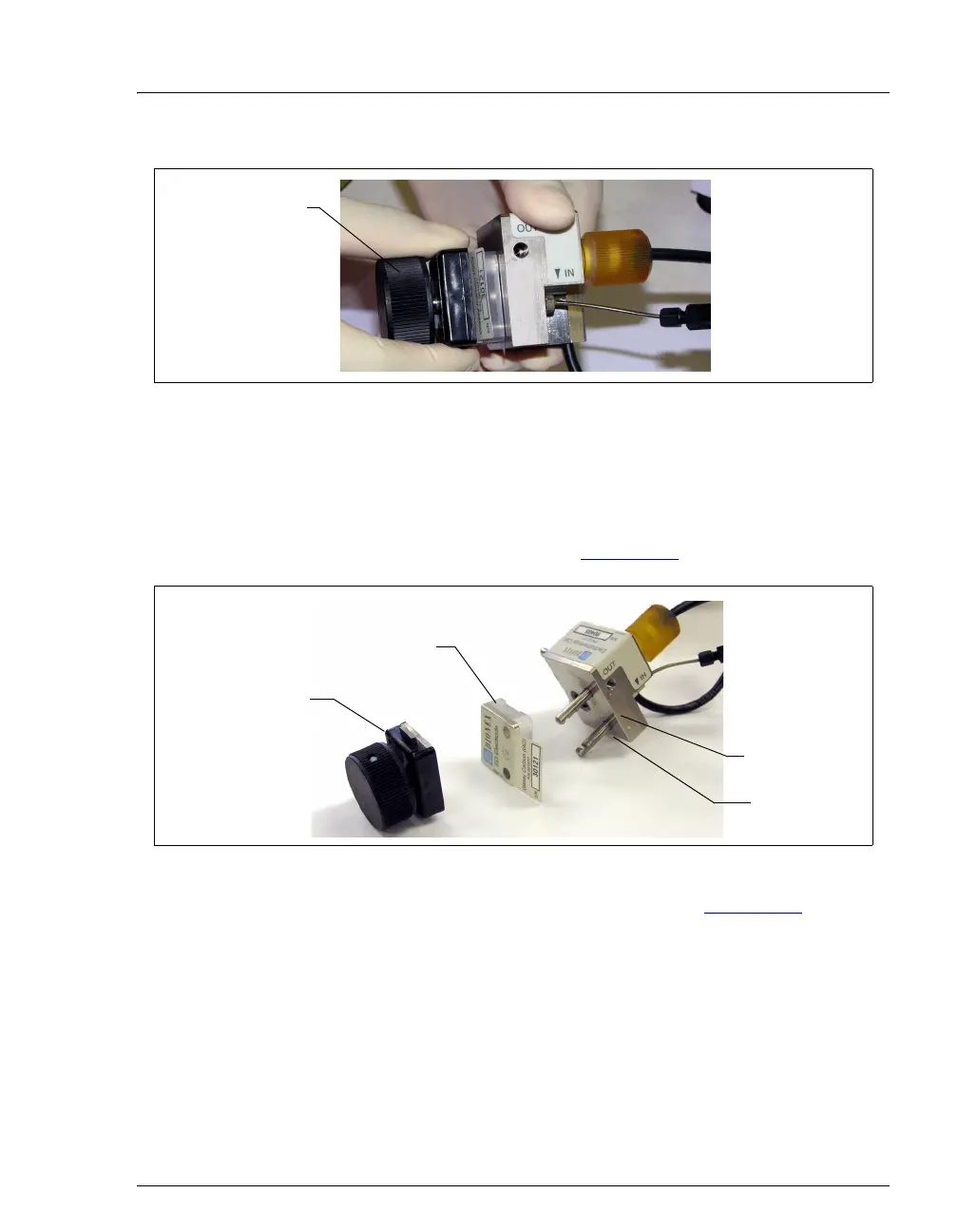

Figure 9-33. Disassembling the Amperometry Cell
Figure 9-34. Amperometry Cell Components
Then, squeeze the
tabs on the yoke
block and pull to
remove it
First, loosen the
PEEK yoke knob
Working
Electrode
Block
Cell Body
Cell Gasket
PEEK Yoke
Block
