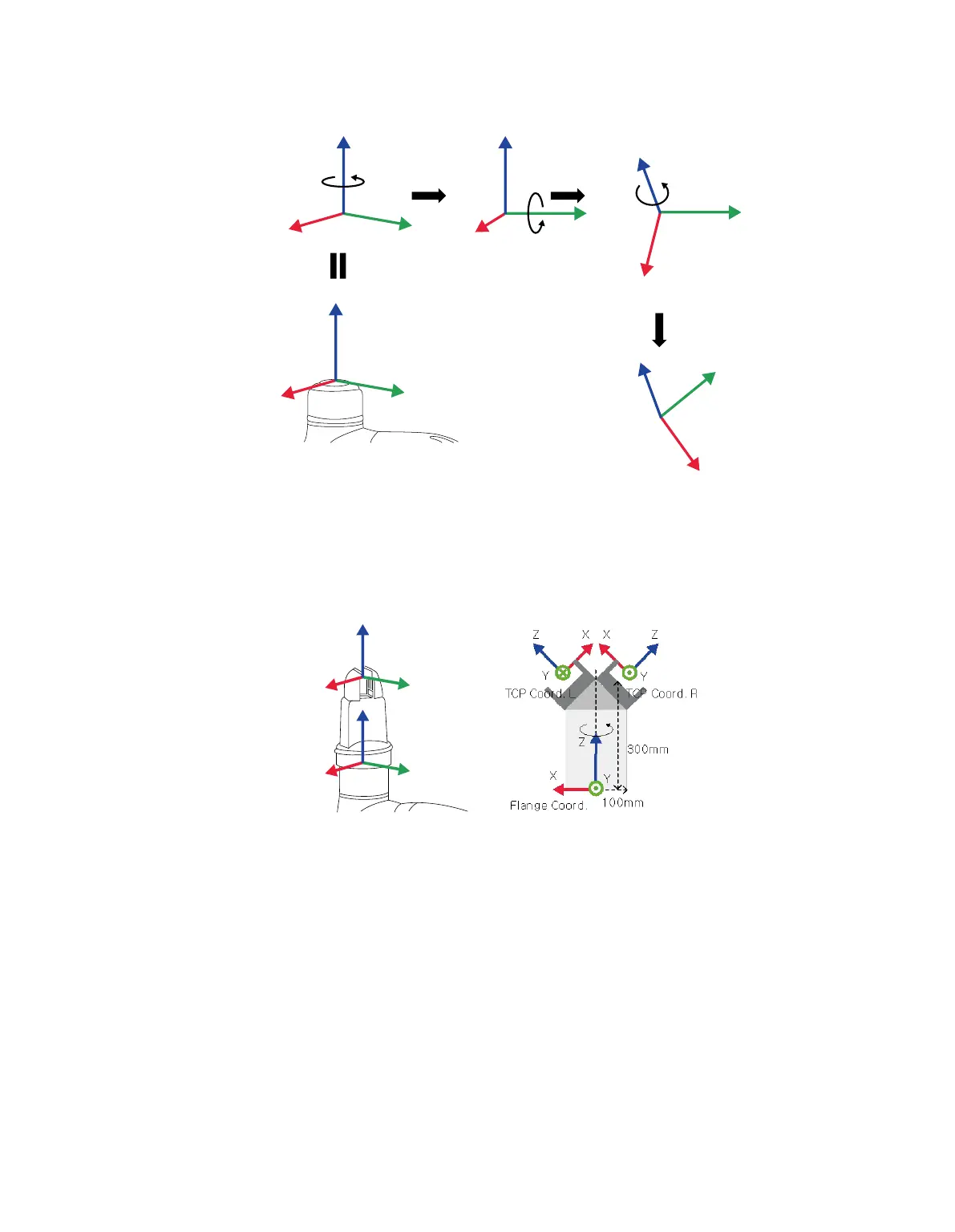

1) Rotate A degrees along the z axis of the Flange Coordinate
2) Rotate B degrees along the y’ axis of the coordinate rotated according to 1)
3) Rotate C degrees along the z’’ axis of the coordinate rotated according to 2)
Here are a few examples of configuring the TCP according to the method described above:
• [X, Y, Z, A, B, C] = [0, 0, 100, 0, 0, 0]: General Gripper with Z-direction offset (TCP Coord)
• [X, Y, Z, A, B, C] = [100, 0, 300, 180, -45, 0]: Left Gripper with 45-degree angle (TCP Coord. L)
• [X, Y, Z, A, B, C] = [-100, 0, 300, 0, -45, 0]: Right Gripper with 45-degree angle (TCP Coord. R)
