11.1.3 Execute based on World Coordinates
To move the robot based on World Coordinates, follow these steps:

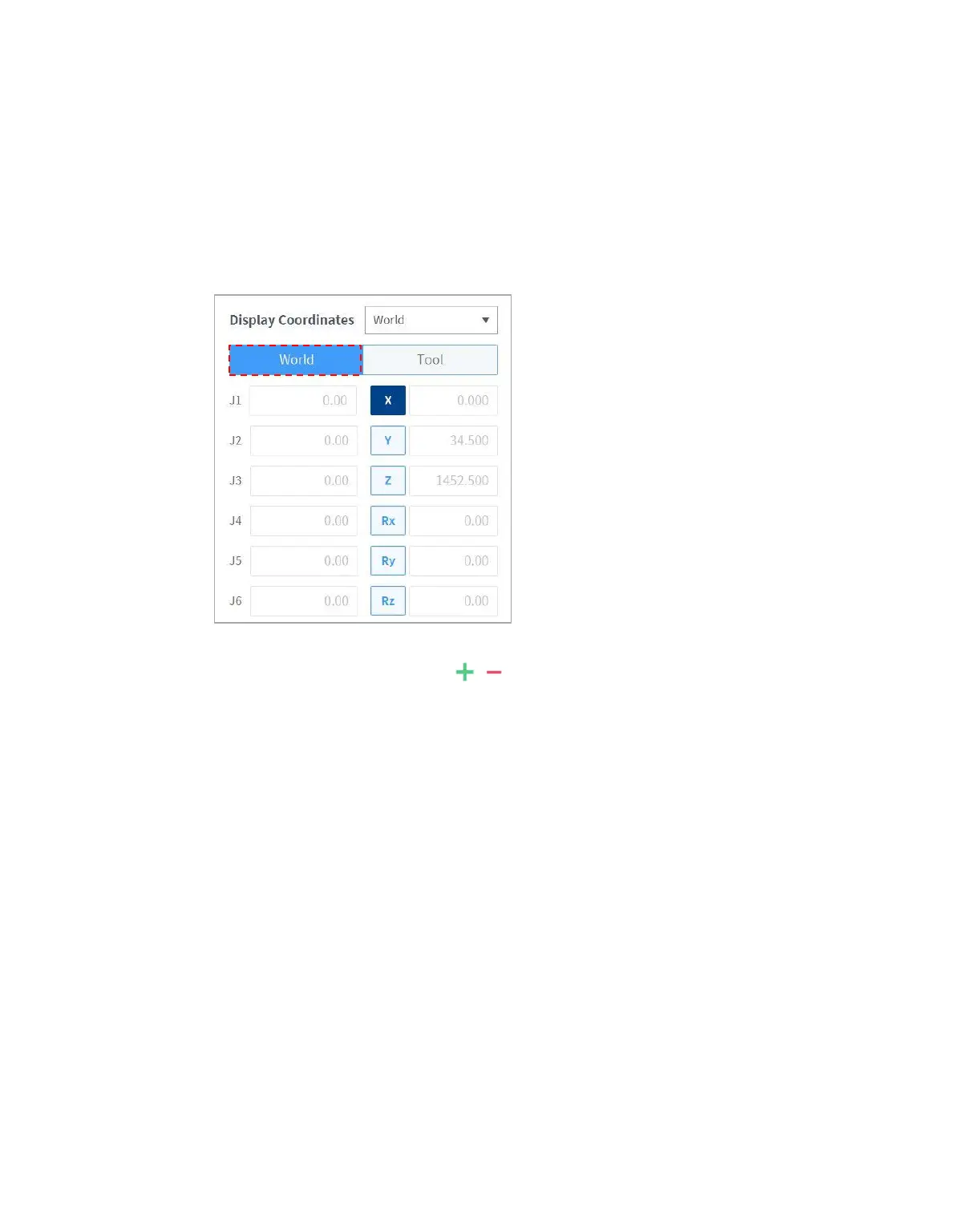

1 Select the Task tab on the Jog screen.
2 Select the display coordinates to be used as World Coordinates and select World as the
reference point of the task coordinates.
3 Select World Coordinates to move.
4 Press and hold the Direction Button ( , ) to move the corresponding axis.
