Doosan H2017 - Jog Plus (Jog+)

205
11.4 Jog Plus (Jog+)
Using Jog+ allows you to use the jog feature simultaneously while performing different work. This can
be used when precise movement to the target point is required during robot teaching.
Jog Plus can be activated in the following ways.

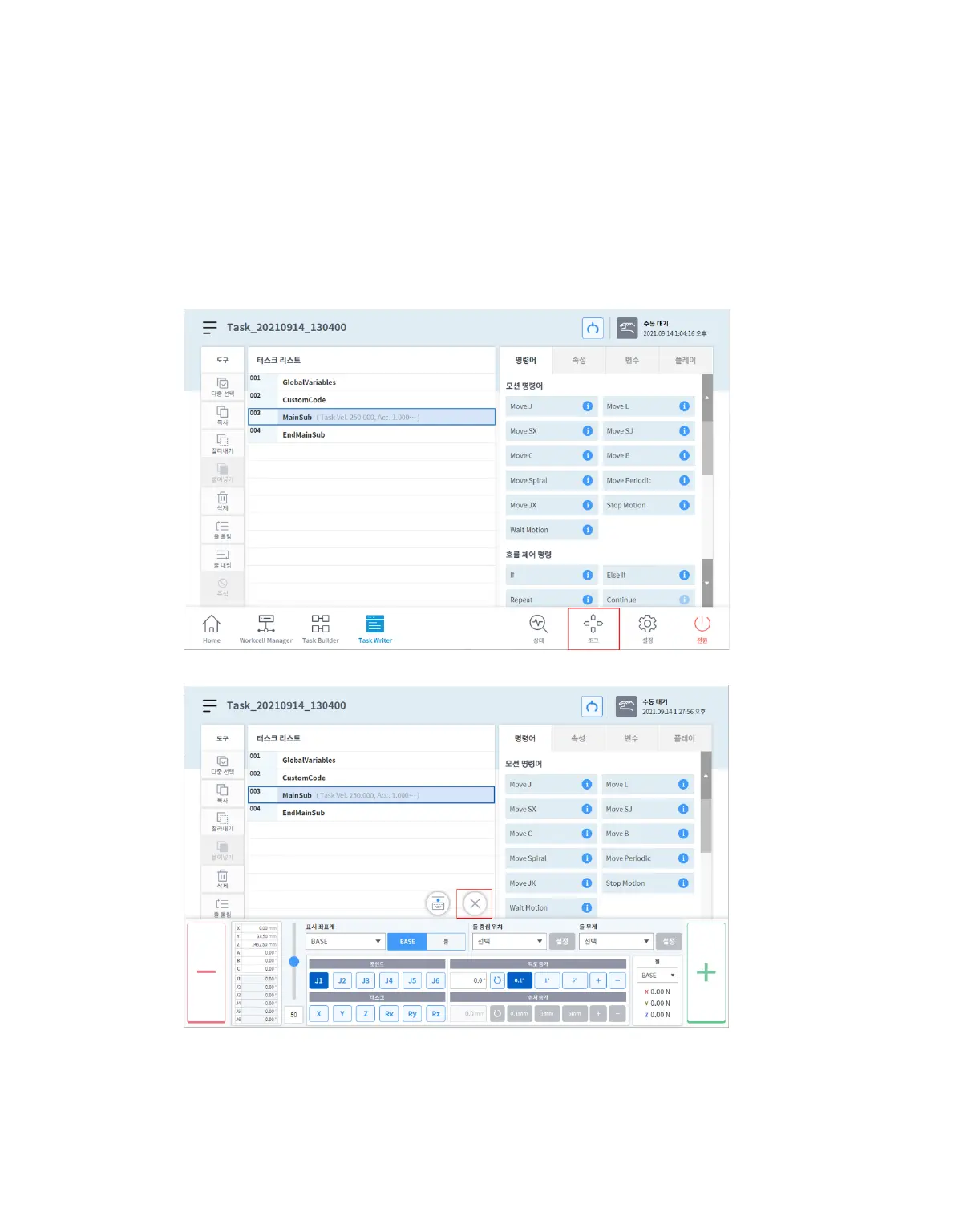

1. Press the jog button for more than 1 second in the main menu at the bottom of the
screen.
2. The Jog Plus screen is activated.
Jog Plus can be deactivated by pressing the ‘X’ button.
