Doosan H2017 - Movement Screen

Doosan Robotics User Manual v2.6.1
194

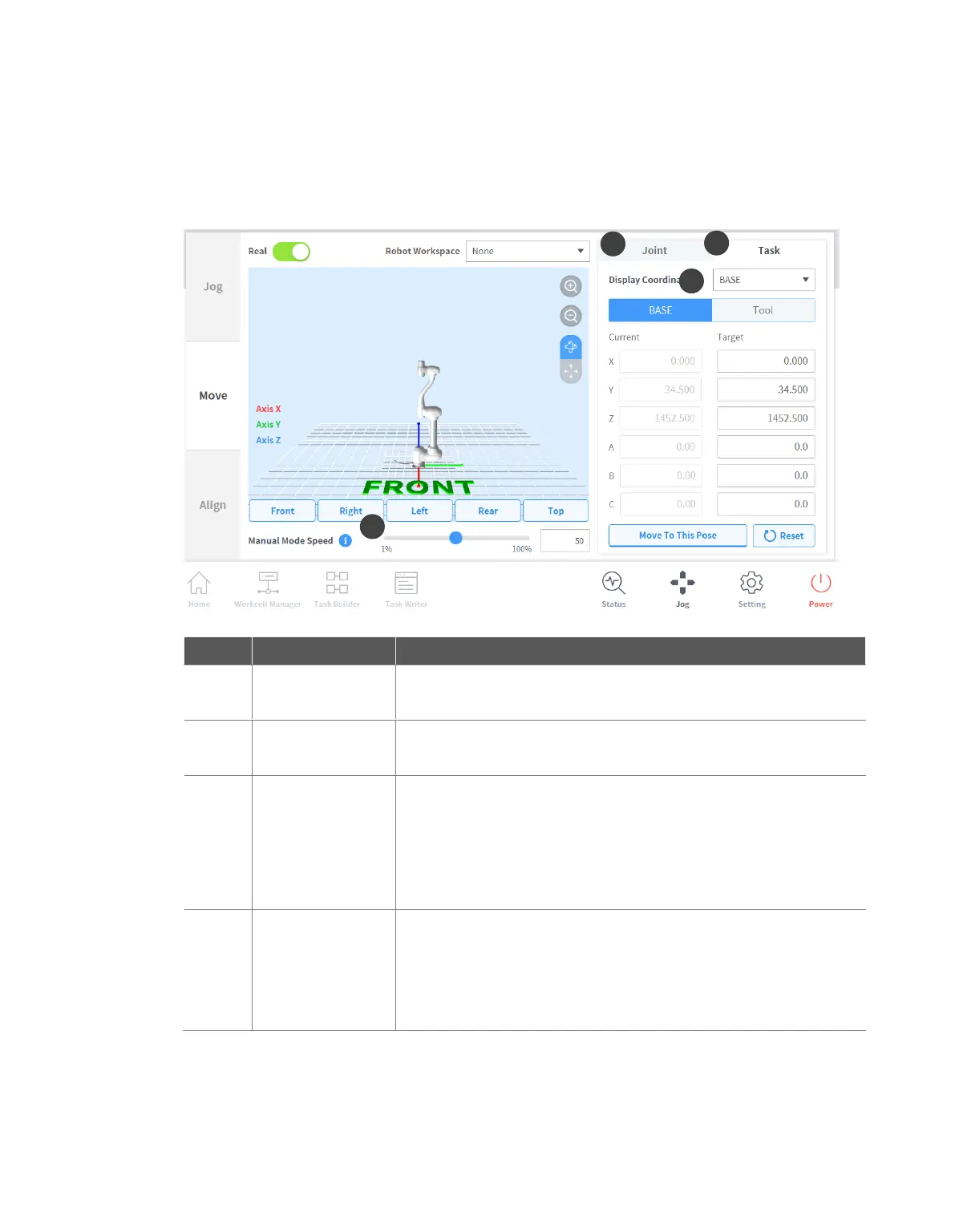

11.2 Movement Screen
The robot can be moved by target angle/coordinates on the Move screen. If the coordinates the robot
must move to are known or if the robot must be moved up to coordinates in decimal points, it is
possible to move the robot by entering coordinates.
No.
Item
Description
1
Joint
It configures the reference coordinate to use when moving the robot
with a jog.
2
Task
It configures the reference angle to use when moving the robot with a
jog.
3
Reference Point
Setting
It configures the reference point to align the task coordinate.
 Base: It configures the task coordinate based on the robot
base.
 World: Sets task coordinates based on the set World
Coordinates.
 Tool: It configures the task coordinate based on the tool
installed on the end of the robot’s six-axis.
4
Manual Mode
Speed
It configures the robot’s movement speed in manual mode. The speed
can be adjusted by dragging the slider pointer.
If the slider pointer is at 100%, the corresponding maximum joint
speed on the Move tab is 30 deg/s, and the maximum task speed is
250 mm/s. The speed influences the jog and button operation speed.
1
2
3
4
