Doosan H2017 - Page 203

203

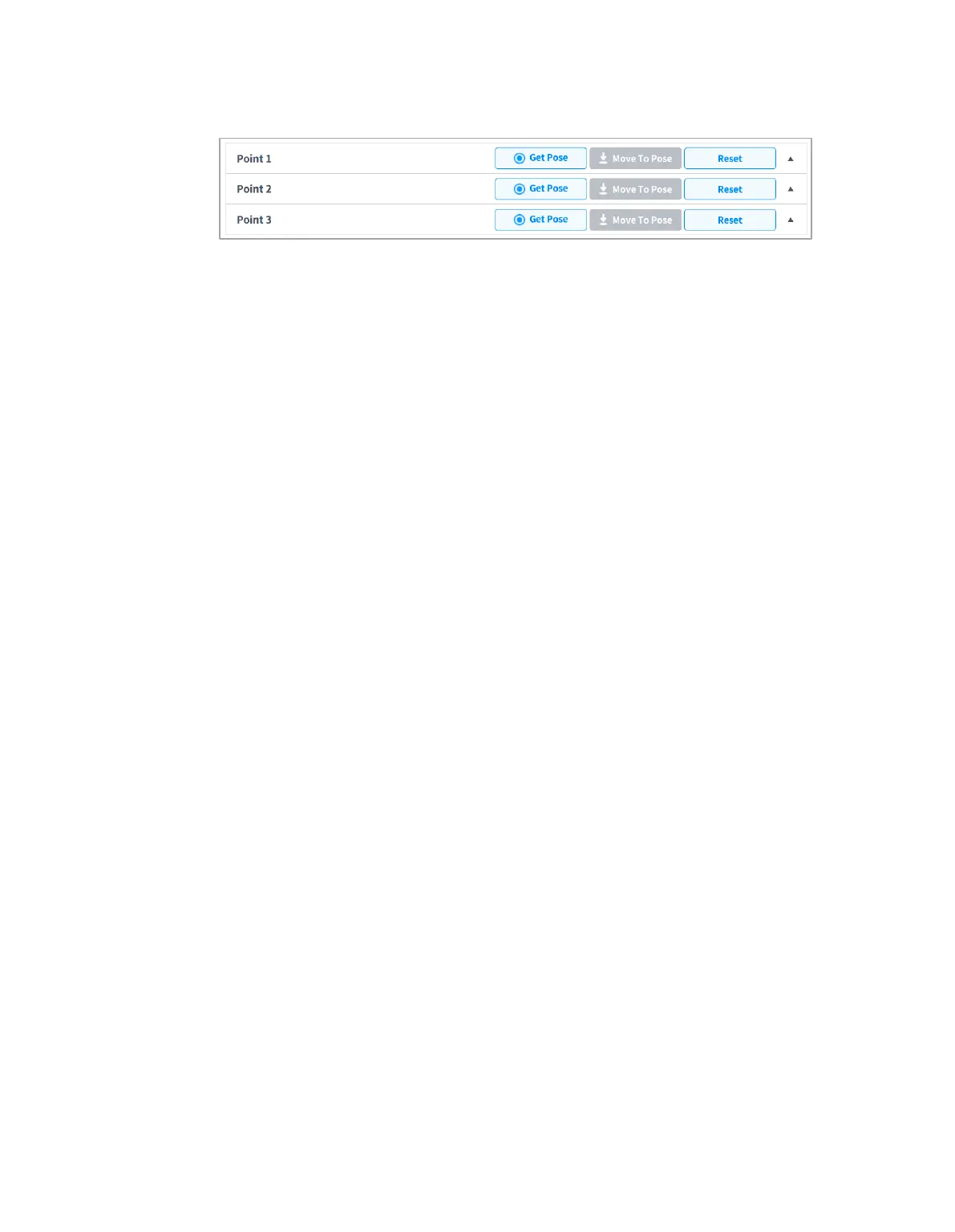

6 (Optional) To set the TCP direction and position together, press the "toggle" button of Point 4 ,
move the robot to the desired position and tap the "Save Pose" button.
7 Tap and hold the Align Axis button to align the axis.
 Place the 6-axis head 150 mm above the target in the Z-axis direction.
