5. Select a group member from the Port list.

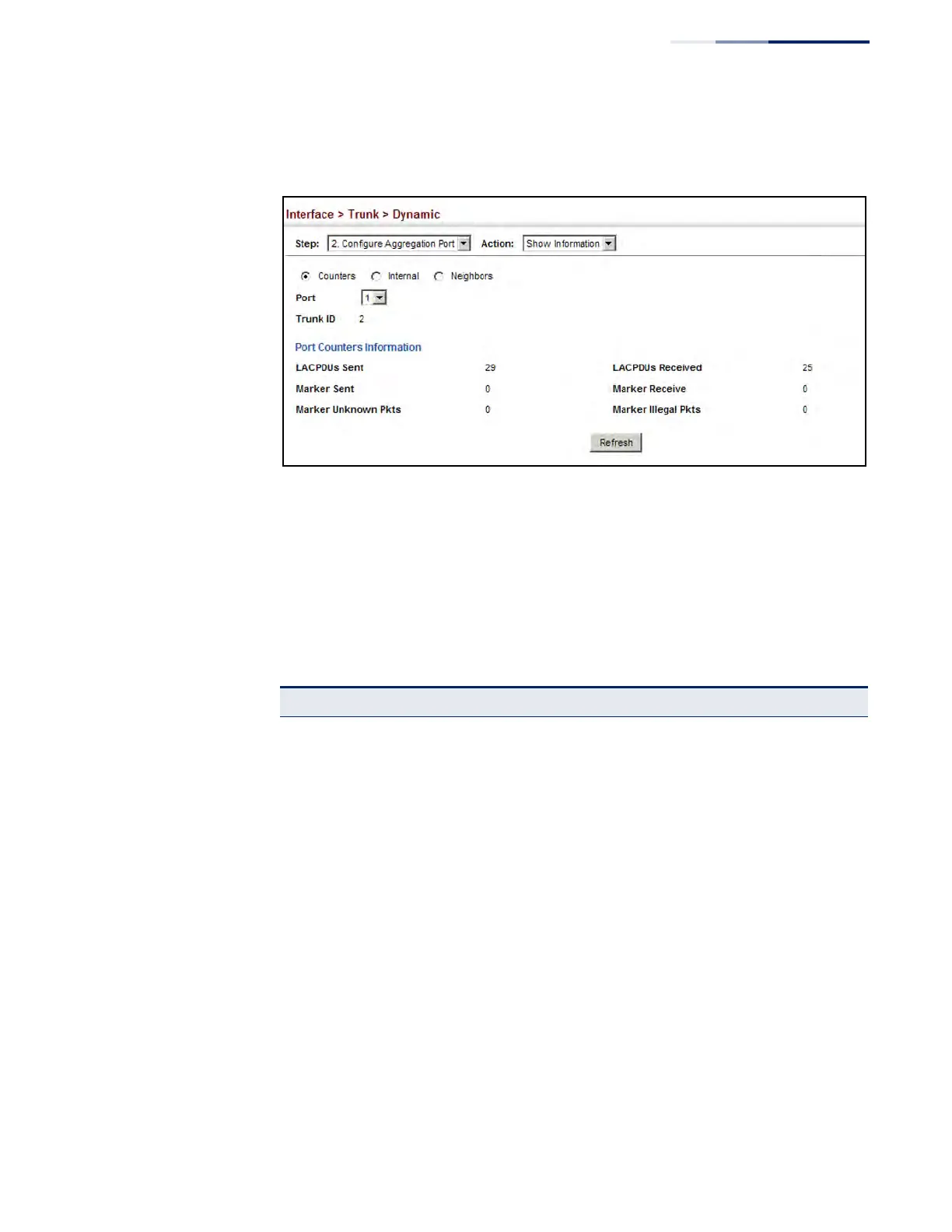

Figure 59: Displaying LACP Port Counters
Displaying LACP
Settings and Status
for the Local Side
Use the Interface > Trunk > Dynamic (Configure Aggregation Port - Show
Information - Internal) page to display the configuration settings and operational
state for the local side of a link aggregation.
Parameters
These parameters are displayed:
Table 7: LACP Internal Configuration Information
Parameter Description
LACP System Priority LACP system priority assigned to this port channel.
LACP Port Priority LACP port priority assigned to this interface within the channel group.
Admin Key Current administrative value of the key for the aggregation port.
Oper Key Current operational value of the key for the aggregation port.
LACPDUs Interval Number of seconds before invalidating received LACPDU information.
Admin State,
Oper State
Administrative or operational values of the actor’s state parameters:
â—†
Expired – The actor’s receive machine is in the expired state;
â—†
Defaulted – The actor’s receive machine is using defaulted operational
partner information, administratively configured for the partner.
â—†
Distributing – If false, distribution of outgoing frames on this link is
disabled; i.e., distribution is currently disabled and is not expected to
be enabled in the absence of administrative changes or changes in
received protocol information.
â—†
Collecting – Collection of incoming frames on this link is enabled; i.e.,
collection is currently enabled and is not expected to be disabled in the
absence of administrative changes or changes in received protocol
information.
â—†
Synchronization – The System considers this link to be IN_SYNC; i.e., it
has been allocated to the correct Link Aggregation Group, the group
has been associated with a compatible Aggregator, and the identity of
the Link Aggregation Group is consistent with the System ID and
operational Key information transmitted.
