Chapter 13
| Basic Administration Protocols
Connectivity Fault Management
– 523 –
Web Interface
To show configuration settings for the fault notification generator:
1. Click Administration, CFM.
2. Select Show Information from the Step list.
3. Select Show Fault Notification Generator from the Action list.

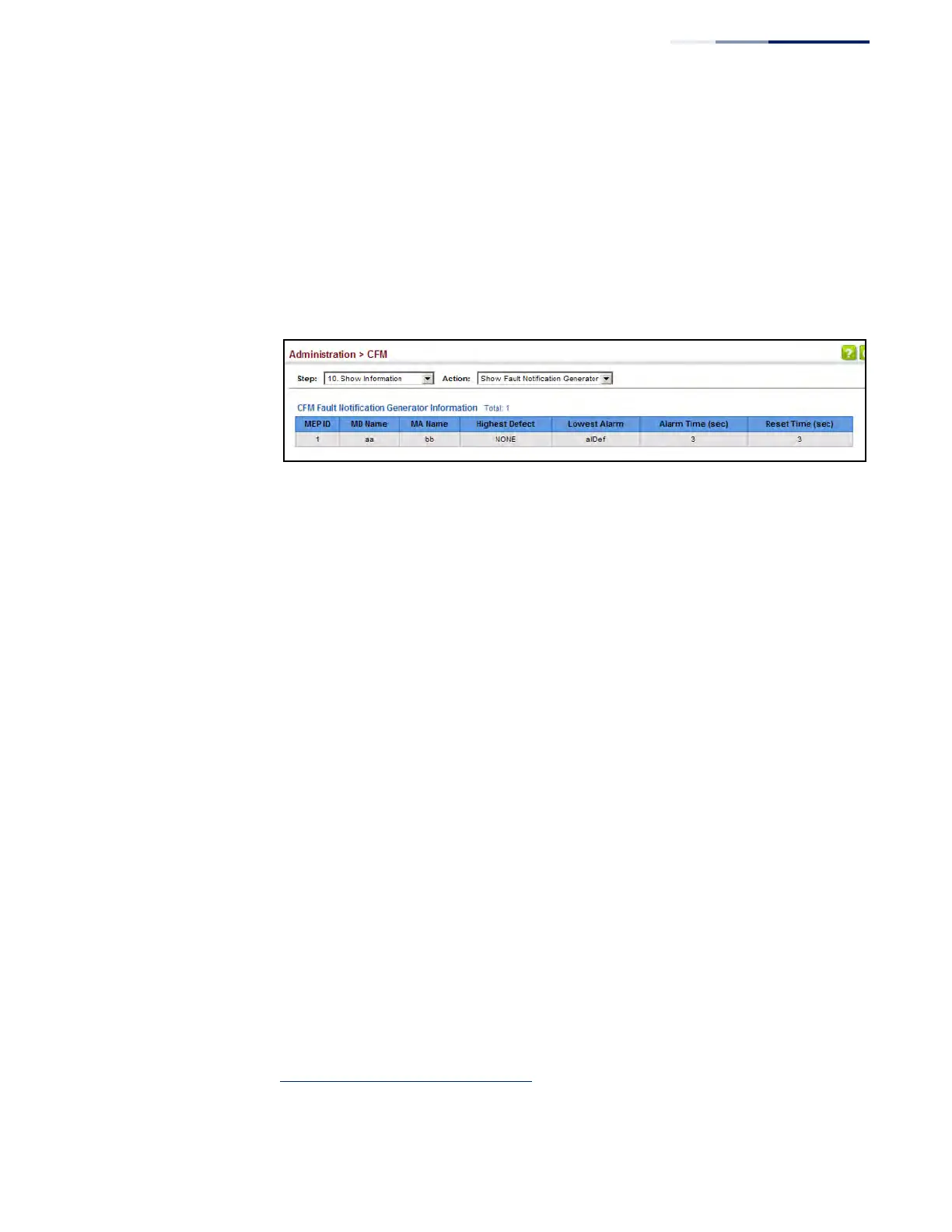

Figure 325: Showing Settings for the Fault Notification Generator
Displaying
Continuity Check
Errors
Use the Administration > CFM > Show Information (Show Continuity Check Error)
page to display the CFM continuity check errors logged on this device.
Parameters
These parameters are displayed:
◆ Level – Maintenance level associated with this entry.
◆ Primary VLAN – VLAN in which this error occurred.
◆ MEP ID – Identifier of remote MEP.
◆ Interface – Port at which the error was recorded.
◆ Remote MAC – MAC address of remote MEP.
◆ Reason – Error types include:
â–
LEAK – MA x is associated with a specific VID list
20
, one or more of the VIDs
in this MA can pass through the bridge port, no MEP is configured facing
outward (down) on any bridge port for this MA, and some other MA y, at a
higher maintenance level, and associated with at least one of the VID(s)
also in MA x, does have a MEP configured on the bridge port.
â–
VIDS – MA x is associated with a specific VID list
20
, an MEP is configured
facing inward (up) on this MA on the bridge port, and some other MA y,
associated with at least one of the VID(s) also in MA x, also has an Up MEP
configured facing inward (up) on some bridge port.
20. This definition is based on the IEEE 802.1ag standard. Current software for this switch
only supports a single VLAN per MA. However, since it may interact with other devices
which support multiple VLAN assignments per MA, this error message may be reported.
