Chapter 13
| Basic Administration Protocols
Link Layer Discovery Protocol
– 415 –
Additional information displayed by an end-point device which advertises LLDP-
MED TLVs is shown in the following figure.

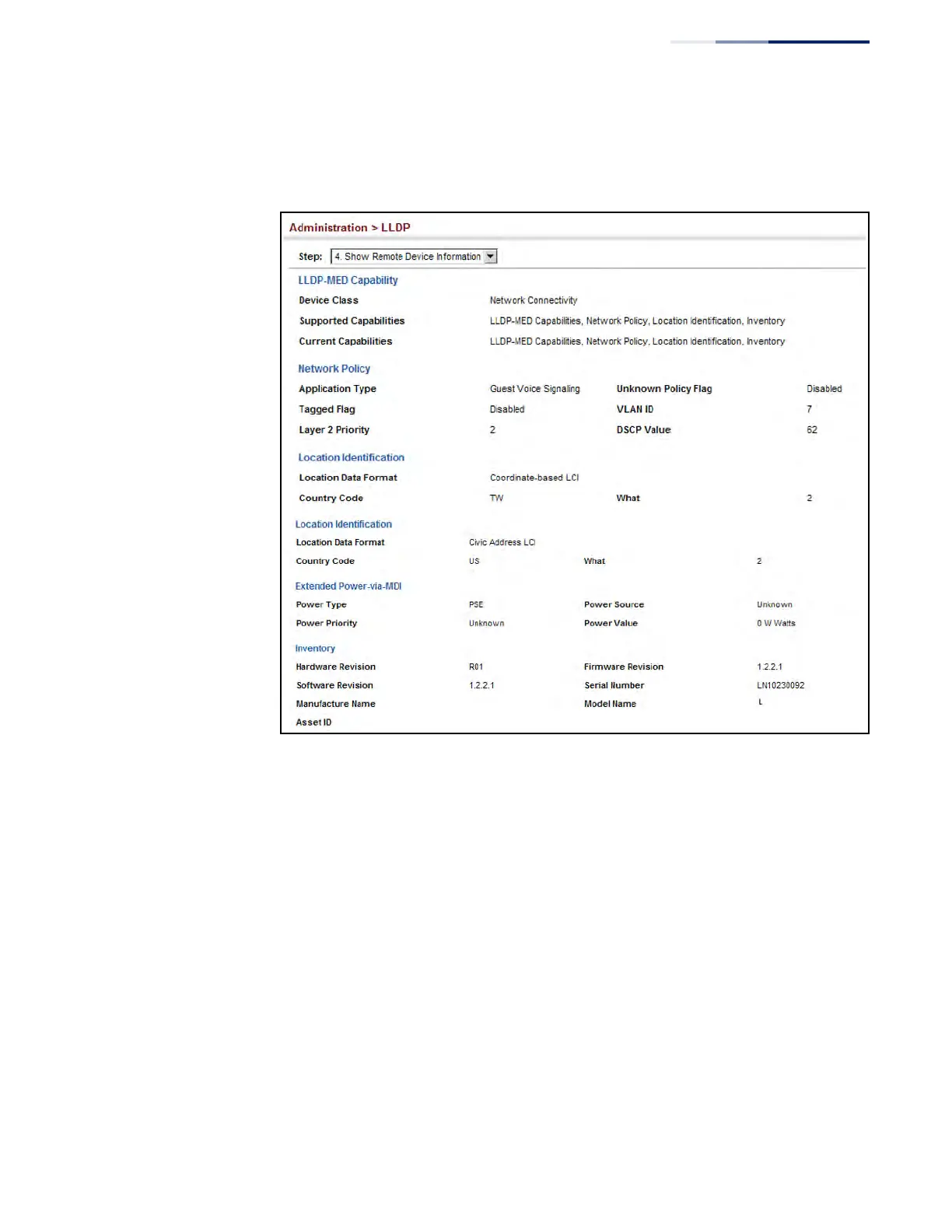

Figure 250: Displaying Remote Device Information for LLDP (End Node)
Displaying
Device Statistics
Use the Administration > LLDP (Show Device Statistics) page to display statistics for
LLDP-capable devices attached to the switch, and for LLDP protocol messages
transmitted or received on all local interfaces.
Parameters
These parameters are displayed:
General Statistics on Remote Devices
◆ Neighbor Entries List Last Updated – The time the LLDP neighbor entry list
was last updated.
◆ New Neighbor Entries Count – The number of LLDP neighbors for which the
remote TTL has not yet expired.
◆ Neighbor Entries Deleted Count – The number of LLDP neighbors which have
been removed from the LLDP remote systems MIB for any reason.
