Chapter 12
| Security Measures
Access Control Lists
– 339 –
Web Interface
To bind an ACL to a port:
1. Click Security, ACL.
2. Select Configure Interface from the Step list.
3. Select Add Mirror from the Action list.
4. Select a port.
5. Select the name of an ACL from the ACL list.
6. Click Apply.

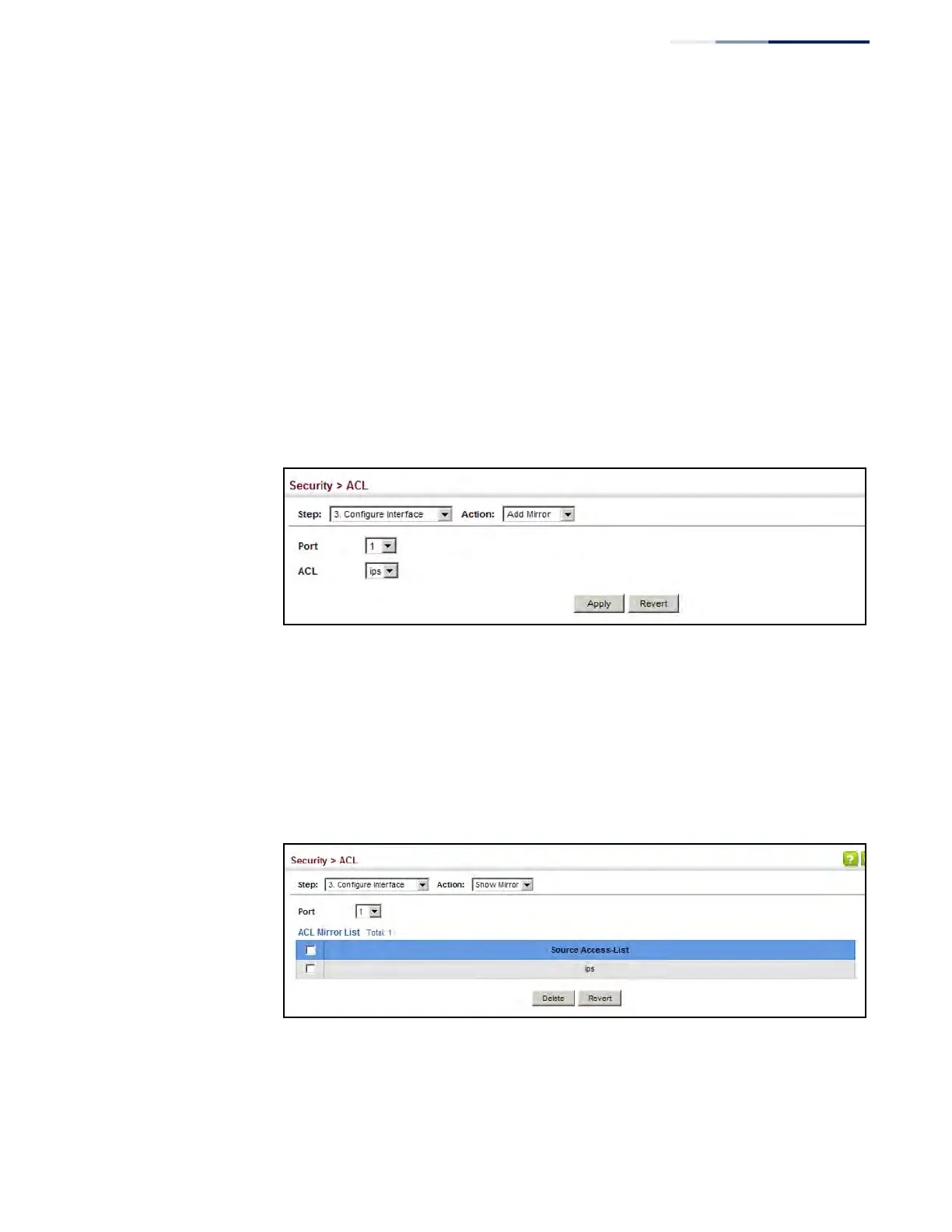

Figure 207: Configuring ACL Mirroring
To show the ACLs to be mirrored:
1. Select Configure Interface from the Step list.
2. Select Show Mirror from the Action list.
3. Select a port.
Figure 208: Showing the VLANs to Mirror
