Chapter 13
| Basic Administration Protocols
Switch Clustering
– 462 –
To show cluster candidates:
1. Click Administration, Cluster.
2. Select Configure Member from the Step list.
3. Select Show Candidate from the Action list.

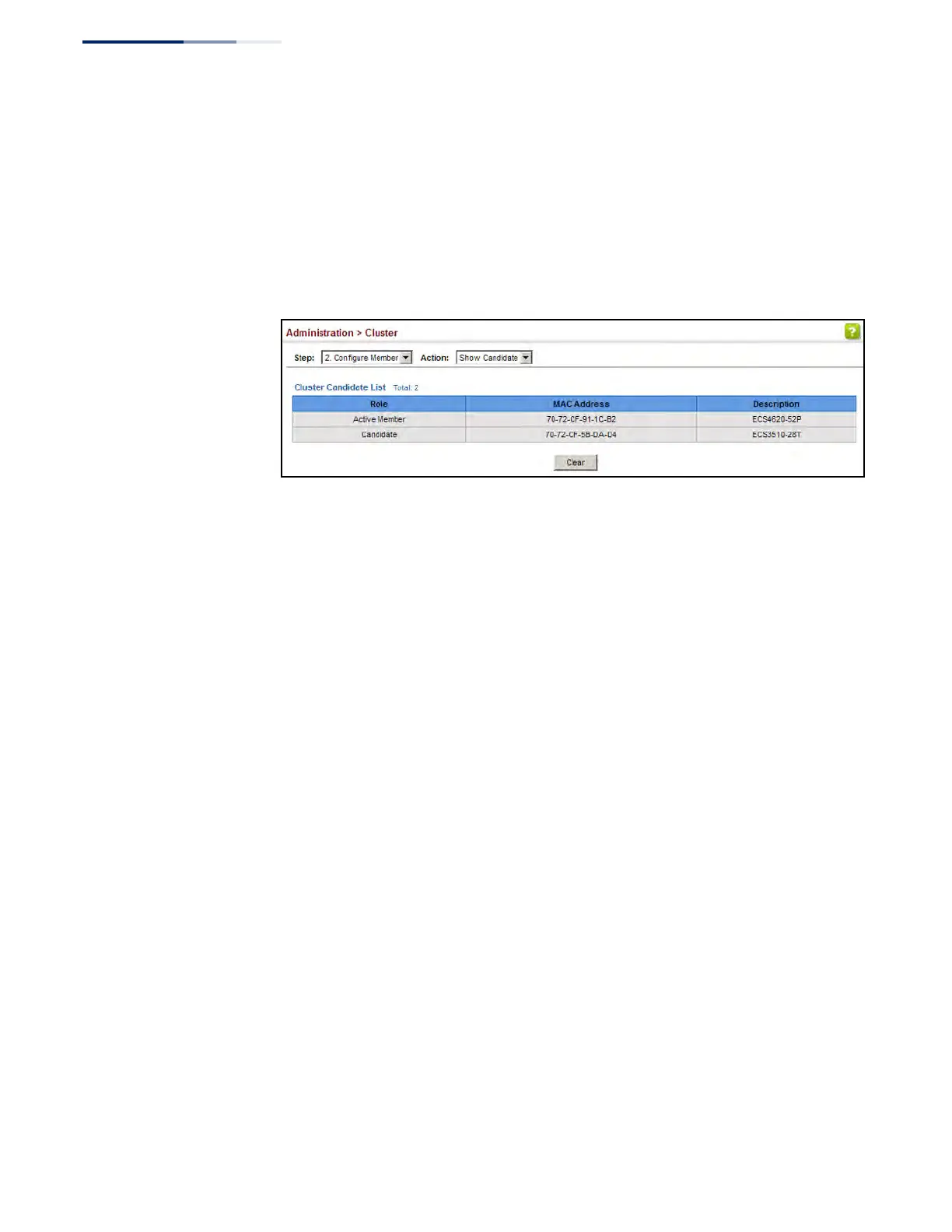

Figure 290: Showing Cluster Candidates
Managing Cluster
Members
Use the Administration > Cluster (Show Member) page to manage another switch
in the cluster.
Parameters
These parameters are displayed:
◆ Member ID – The ID number of the Member switch. (Range: 1-36)
◆ Role – Indicates the current status of the switch in the cluster.
◆ IP Address – The internal cluster IP address assigned to the Member switch.
◆ MAC Address – The MAC address of the Member switch.
◆ Description – The system description string of the Member switch.
◆ Operate – Remotely manage a cluster member.
