Chapter 6 | Address Table Settings
Issuing MAC Address Traps
– 205 –

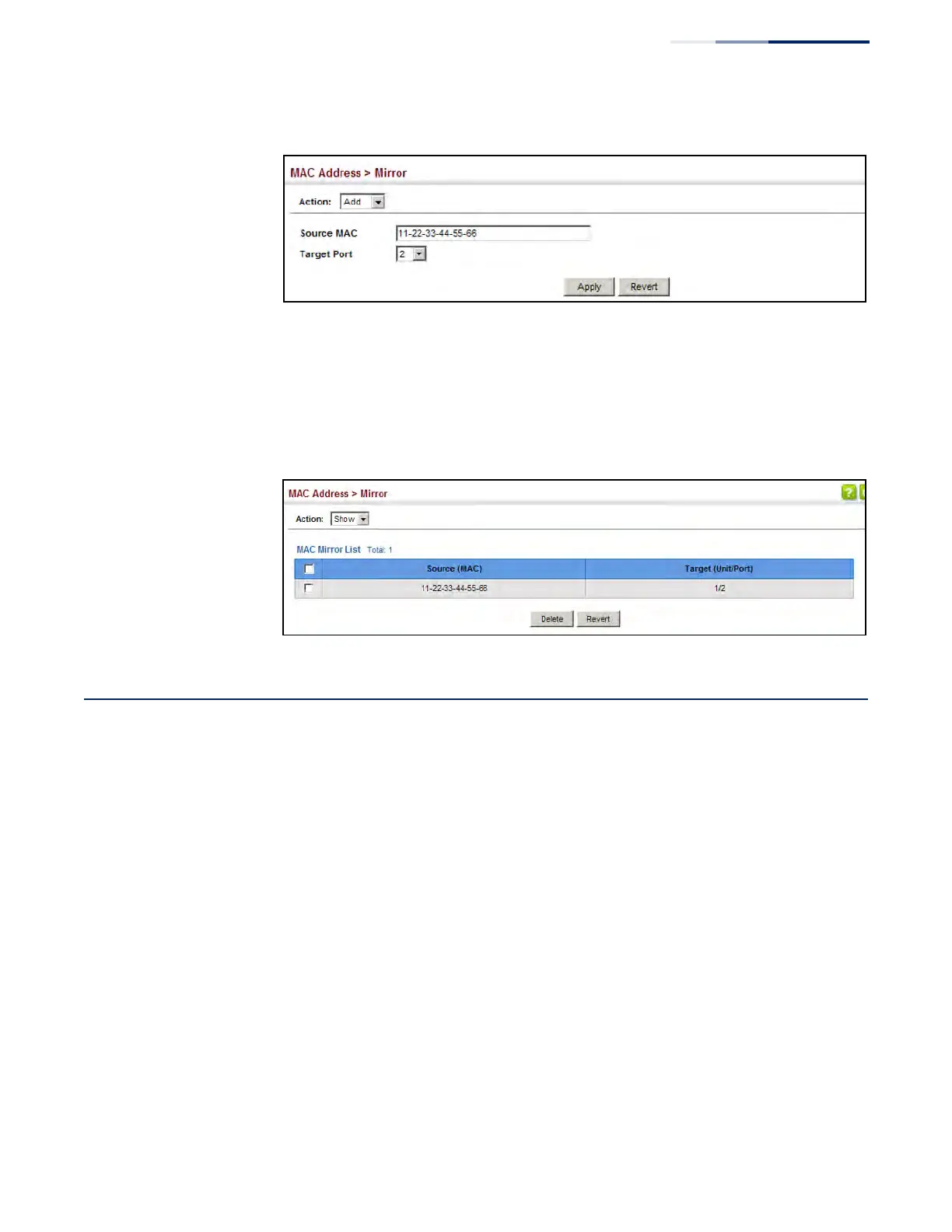

Figure 105: Mirroring Packets Based on the Source MAC Address
To show the MAC addresses to be mirrored:
1. Click MAC Address, Mirror.
2. Select Show from the Action list.
Figure 106: Showing the Source MAC Addresses to Mirror
Issuing MAC Address Traps
Use the MAC Address > MAC Notification pages to send SNMP traps (i.e., SNMP
notifications) when a dynamic MAC address is added or removed.
Parameters
These parameters are displayed:
Configure Global
◆ MAC Notification Traps – Issues a trap when a dynamic MAC address is added
or removed. (Default: Disabled)
◆ MAC Notification Trap Interval – Specifies the interval between issuing two
consecutive traps. (Range: 1-3600 seconds; Default: 1 second)
Configure Interface
◆ Port – Port Identifier. (Range: 1-28/52)
◆ MAC Notification Trap – Enables MAC authentication traps on the current
interface. (Default: Disabled)
