Edge-Core ECS4620-28F - Figure 143: Configuring Cos to DSCP Internal Mapping

Chapter 9 | Class of Service
Layer 3/4 Priority Settings
– 253 –
Web Interface
To map CoS/CFI values to internal PHB/drop precedence:
1. Click Traffic, Priority, CoS to DSCP.
2. Select Configure from the Action list.
3. Select a port.
4. Set the PHB and drop precedence for any of the CoS/CFI combinations.
5. Click Apply.

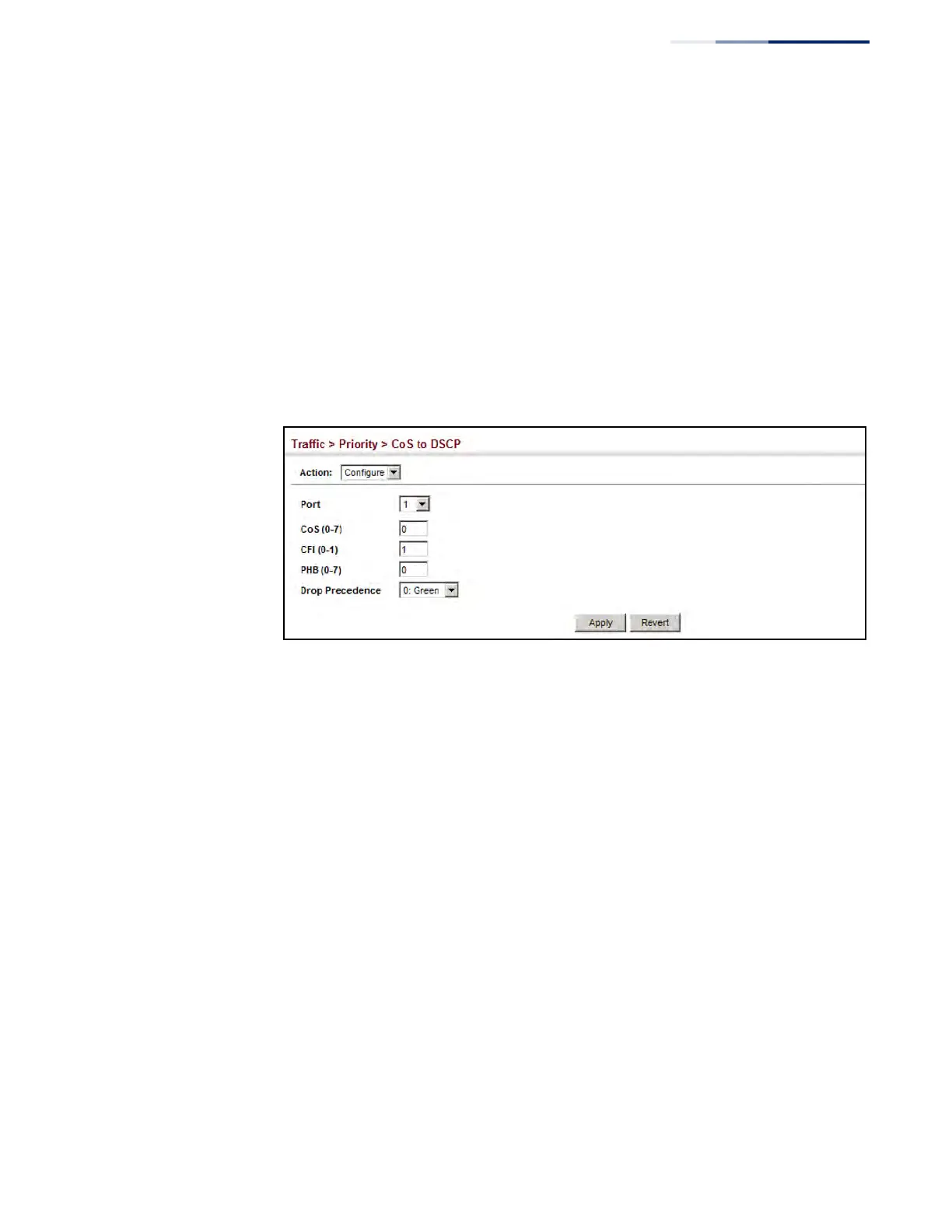

Figure 143: Configuring CoS to DSCP Internal Mapping
