Chapter 13
| Basic Administration Protocols
Remote Monitoring
– 457 –

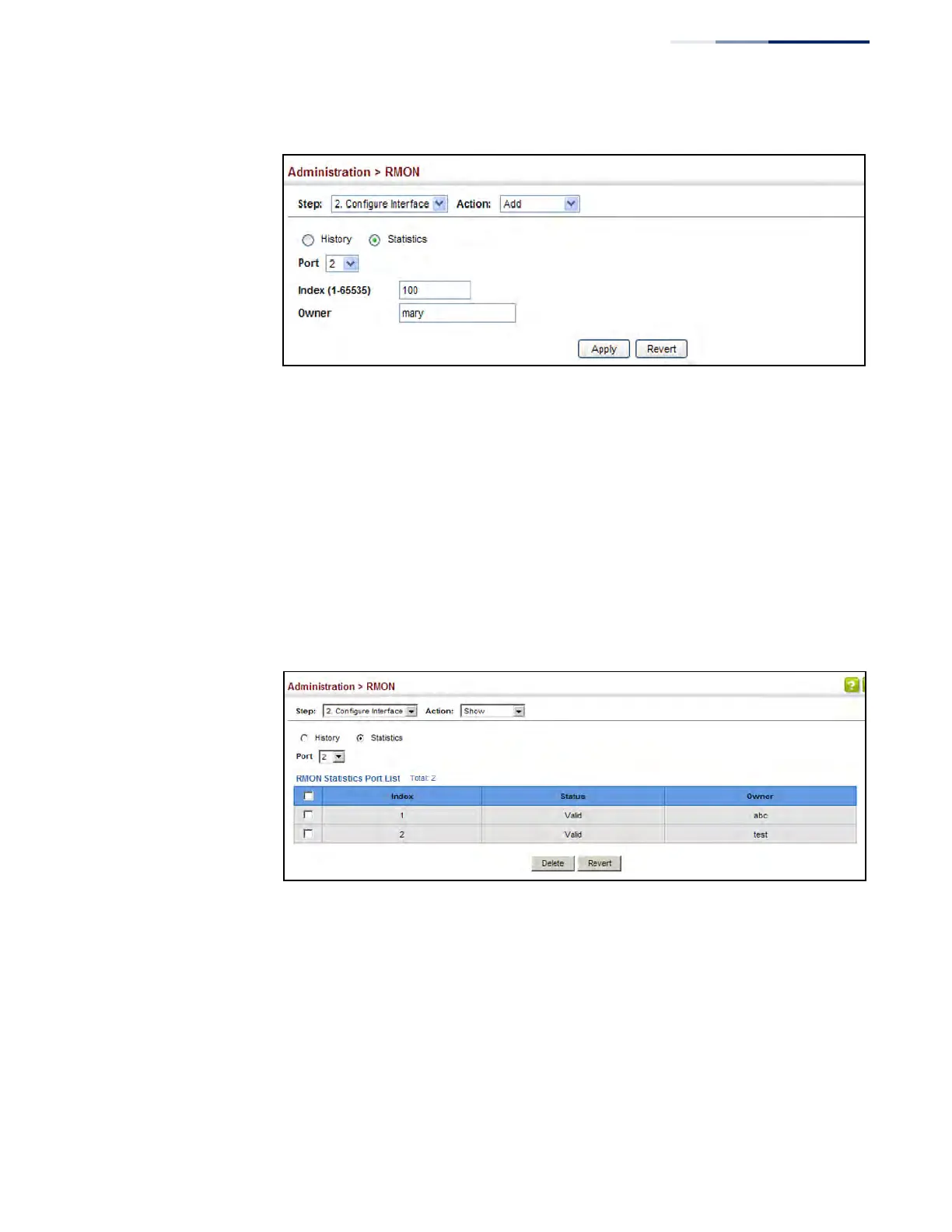

Figure 284: Configuring an RMON Statistical Sample
To show configured RMON statistical samples:
1. Click Administration, RMON.
2. Select Configure Interface from the Step list.
3. Select Show from the Action list.
4. Select a port from the list.
5. Click Statistics.
Figure 285: Showing Configured RMON Statistical Samples
To show collected RMON statistical samples:
1. Click Administration, RMON.
2. Select Configure Interface from the Step list.
3. Select Show Details from the Action list.
4. Select a port from the list.
5. Click Statistics.
