Configuring Interface Settings for STA
– 217 –
root port, then this switch has been accepted as the root device of the
Spanning Tree network.
◆ Root Path Cost – The path cost from the root port on this switch to the root
device.
◆ Configuration Changes – The number of times the Spanning Tree has been
reconfigured.
◆ Last Topology Change – Time since the Spanning Tree was last reconfigured.
Web Interface
To display global STA settings:
1. Click Spanning Tree, STA.
2. Select Configure Global from the Step list.
3. Select Show Information from the Action list.

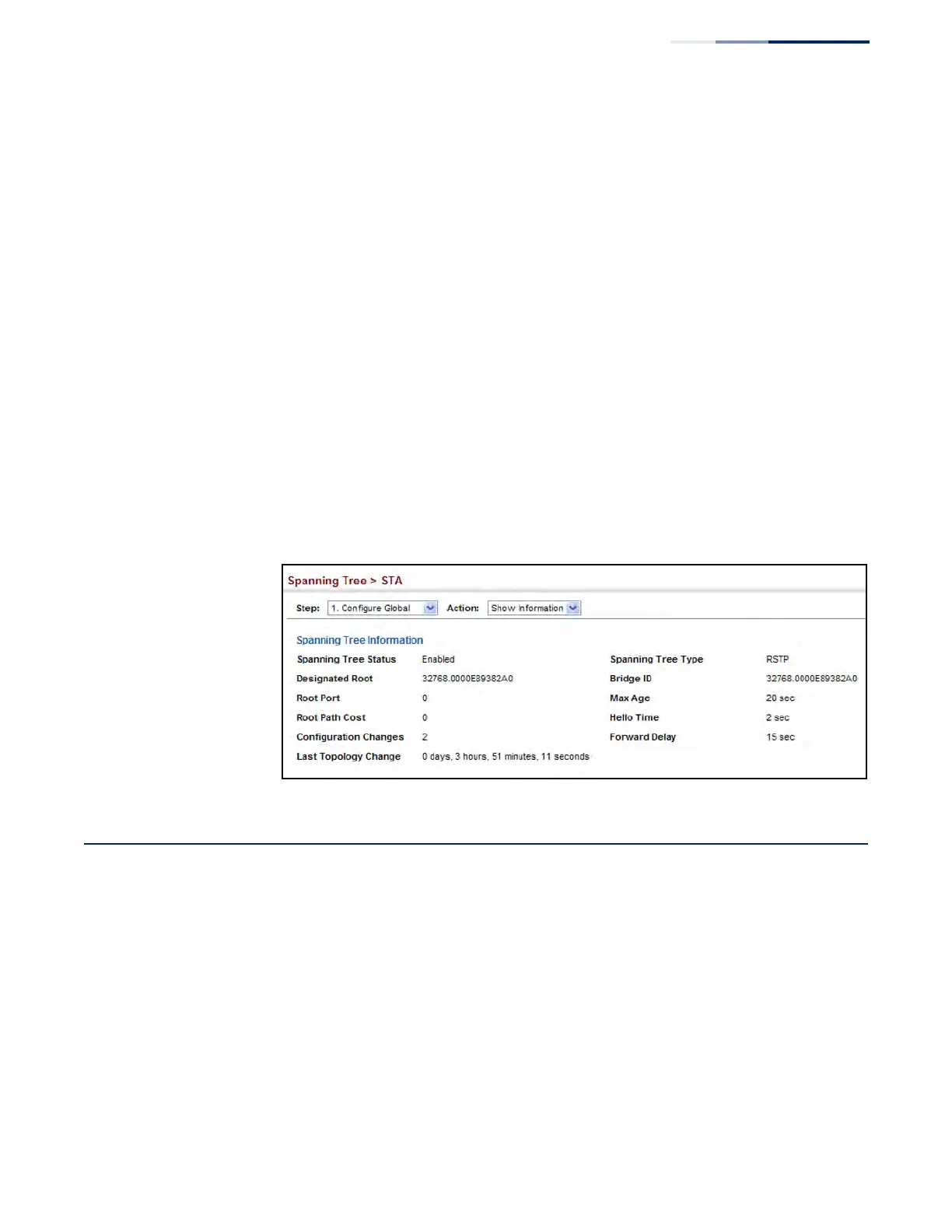

Figure 116: Displaying Global Settings for STA
Configuring Interface Settings for STA
Use the Spanning Tree > STA (Configure Interface - Configure) page to configure
RSTP and MSTP attributes for specific interfaces, including port priority, path cost,
link type, and edge port. You may use a different priority or path cost for ports of
the same media type to indicate the preferred path, link type to indicate a point-to-
point connection or shared-media connection, and edge port to indicate if the
attached device can support fast forwarding. (References to “ports” in this section
means “interfaces,” which includes both ports and trunks.)
