Chapter 14 | Multicast Filtering
Layer 2 IGMP (Snooping and Query for IPv4)
– 555 –
Web Interface
To configure IGMP snooping on a VLAN:
1. Click Multicast, IGMP Snooping, Interface.
2. Select Configure VLAN from the Action list.
3. Select the VLAN to configure and update the required parameters.
4. Click Apply.

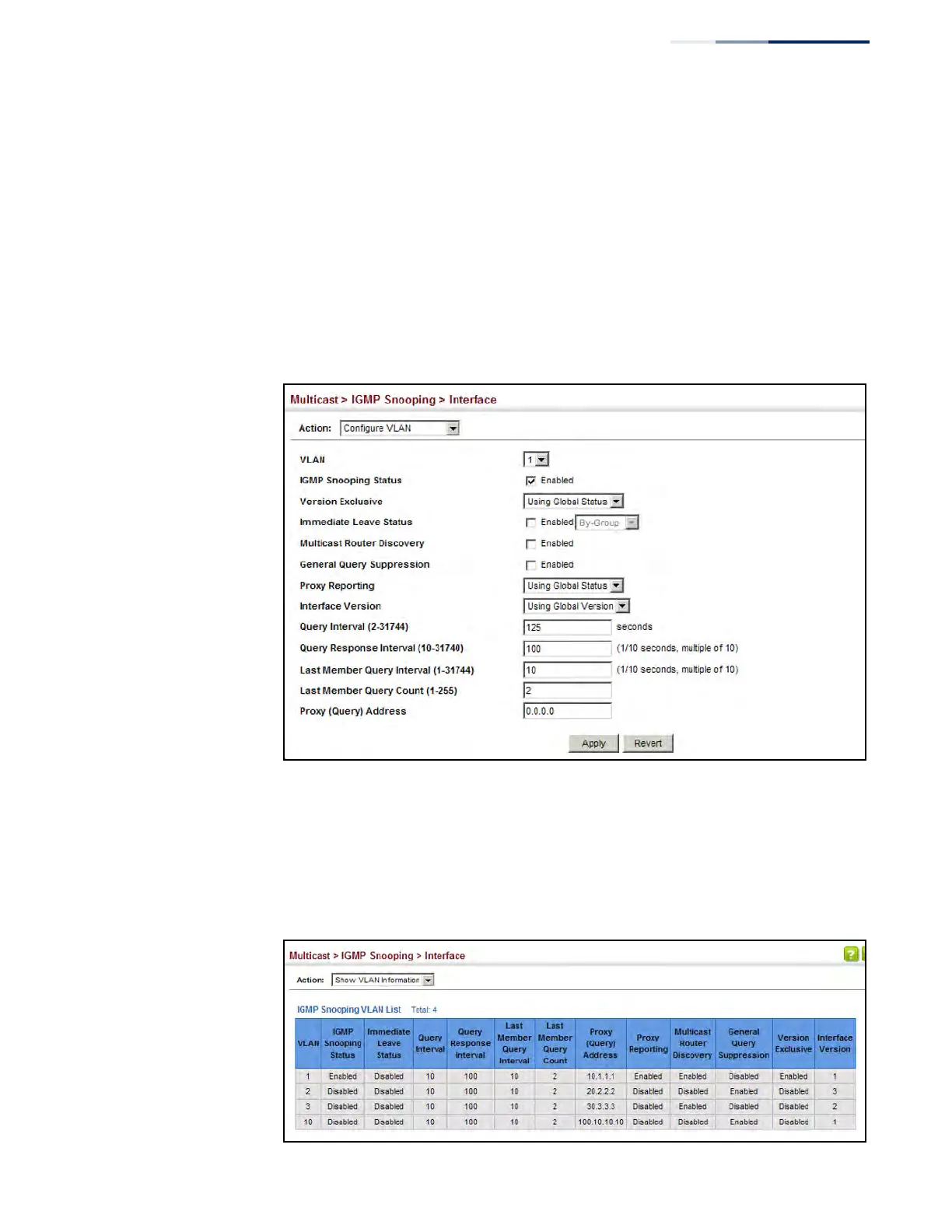

Figure 343: Configuring IGMP Snooping on a VLAN
To show the interface settings for IGMP snooping:
1. Click Multicast, IGMP Snooping, Interface.
2. Select Show VLAN Information from the Action list.
Figure 344: Showing Interface Settings for IGMP Snooping
