Chapter 13
| Basic Administration Protocols
Switch Clustering
– 460 –
Web Interface
To configure a switch cluster:
1. Click Administration, Cluster.
2. Select Configure Global from the Step list.
3. Set the required attributes for a Commander or a managed candidate.
4. Click Apply

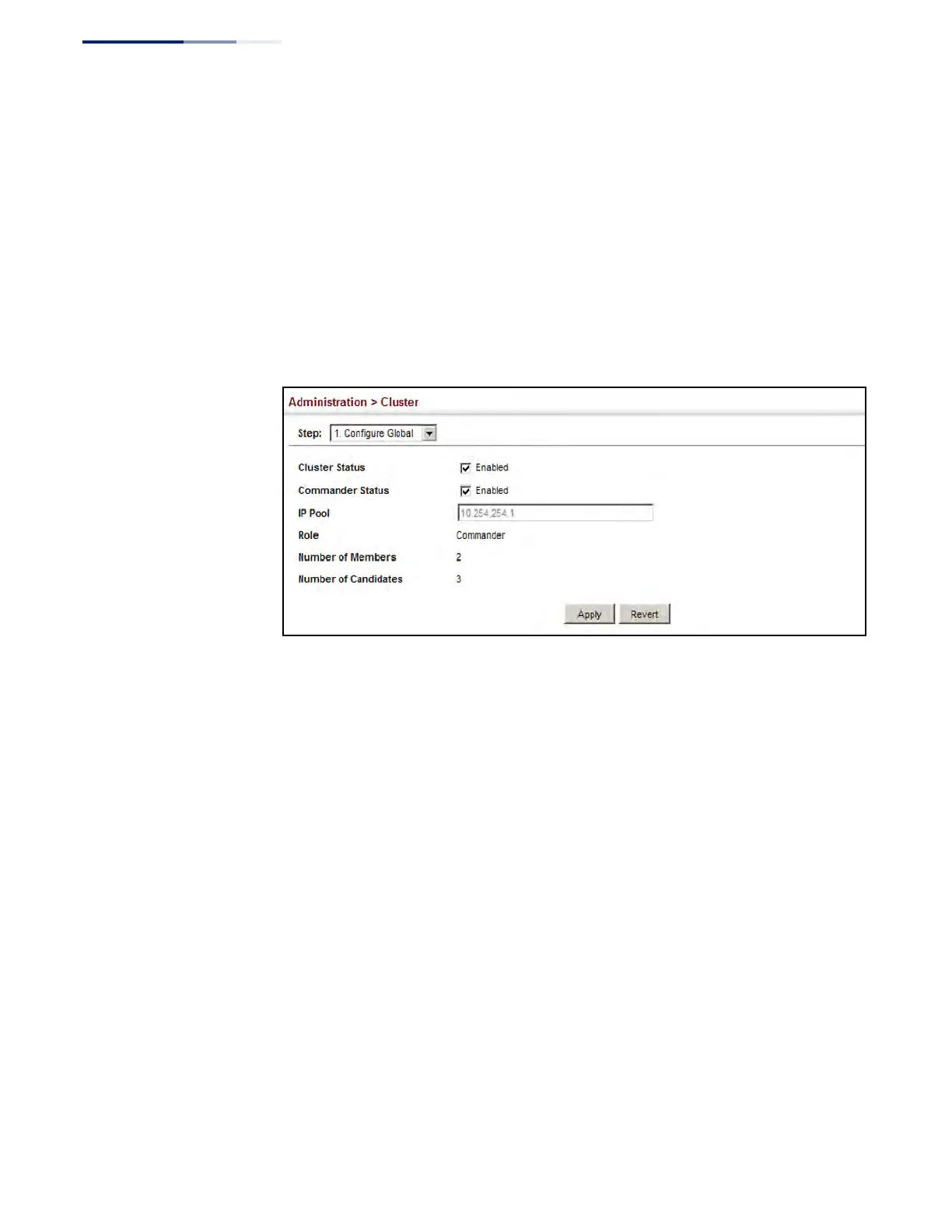

Figure 287: Configuring a Switch Cluster
Cluster Member
Configuration
Use the Administration > Cluster (Configure Member - Add) page to add Candidate
switches to the cluster as Members.
Parameters
These parameters are displayed:
◆ Member ID – Specify a Member ID number for the selected Candidate switch.
(Range: 1-36)
◆ MAC Address – Select a discovered switch MAC address from the Candidate
Table, or enter a specific MAC address of a known switch.
