Chapter 14 | Multicast Filtering
Multicast VLAN Registration for IPv4
– 595 –
Parameters
These parameters are displayed:
◆ Domain ID – An independent multicast domain. (Range: 1-5)
◆ Interface – Port or trunk identifier.
◆ VLAN – VLAN identifier. (Range: 1-4094)
◆ Group IP Address – Defines a multicast service sent to the selected port.
Multicast groups must be assigned from the MVR group range configured on
the Configure General page.
Web Interface
To assign a static MVR group to an interface:
1. Click Multicast, MVR.
2. Select Configure Static Group Member from the Step list.
3. Select Add from the Action list.
4. Select an MVR domain.
5. Select a VLAN and interface to receive the multicast stream, and then enter the
multicast group address.
6. Click Apply.

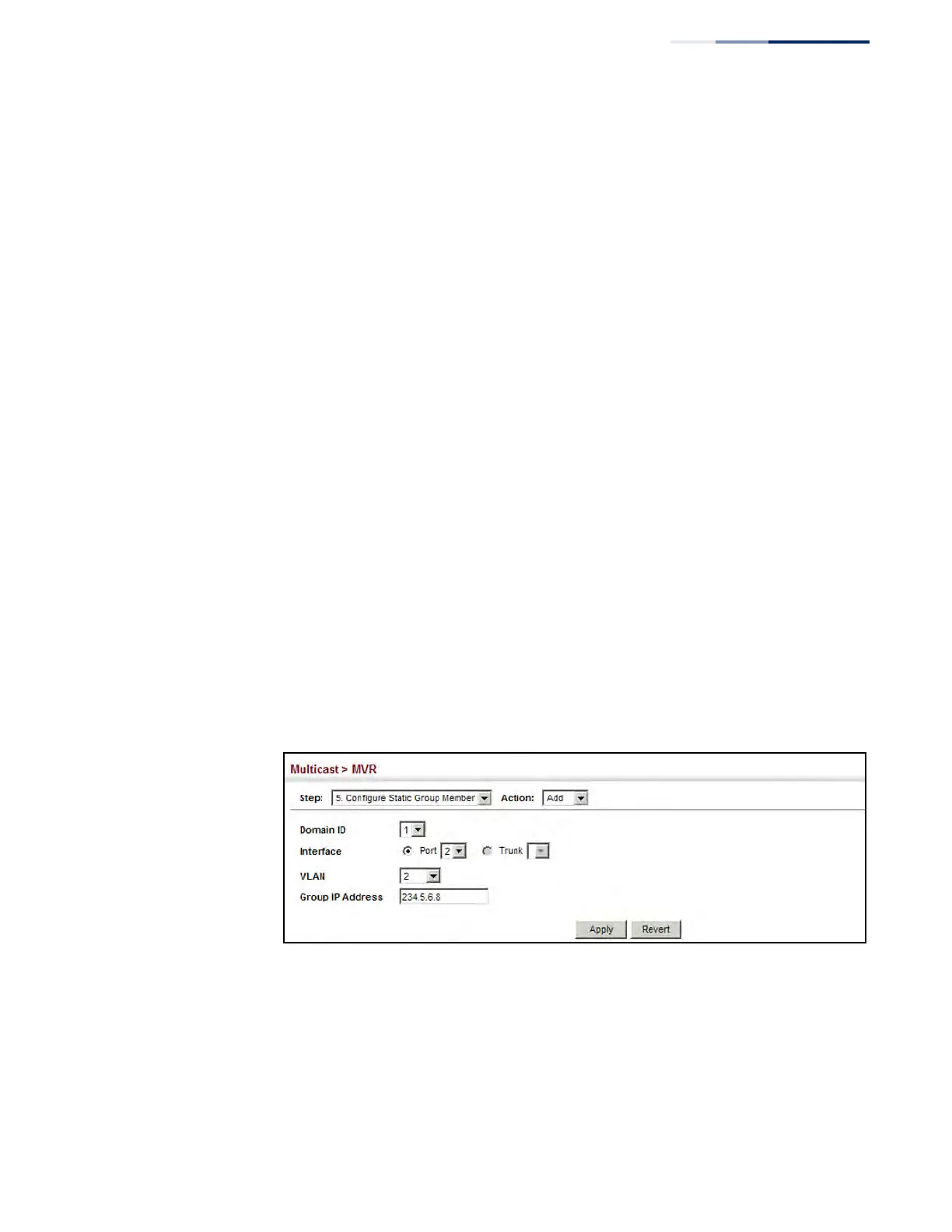

Figure 380: Assigning Static MVR Groups to an Interface
To show the static MVR groups assigned to an interface:
1. Click Multicast, MVR.
2. Select Configure Static Group Member from the Step list.
3. Select Show from the Action list.
