Edge-Core ECS4620-28F - Figure 141: Configuring DSCP to DSCP Internal Mapping; Figure 142: Showing DSCP to DSCP Internal Mapping

Chapter 9 | Class of Service
Layer 3/4 Priority Settings
– 251 –
Web Interface
To map DSCP values to internal PHB/drop precedence:
1. Click Traffic, Priority, DSCP to DSCP.
2. Select Configure from the Action list.
3. Select a port.
4. Set the PHB and drop precedence for any DSCP value.
5. Click Apply.

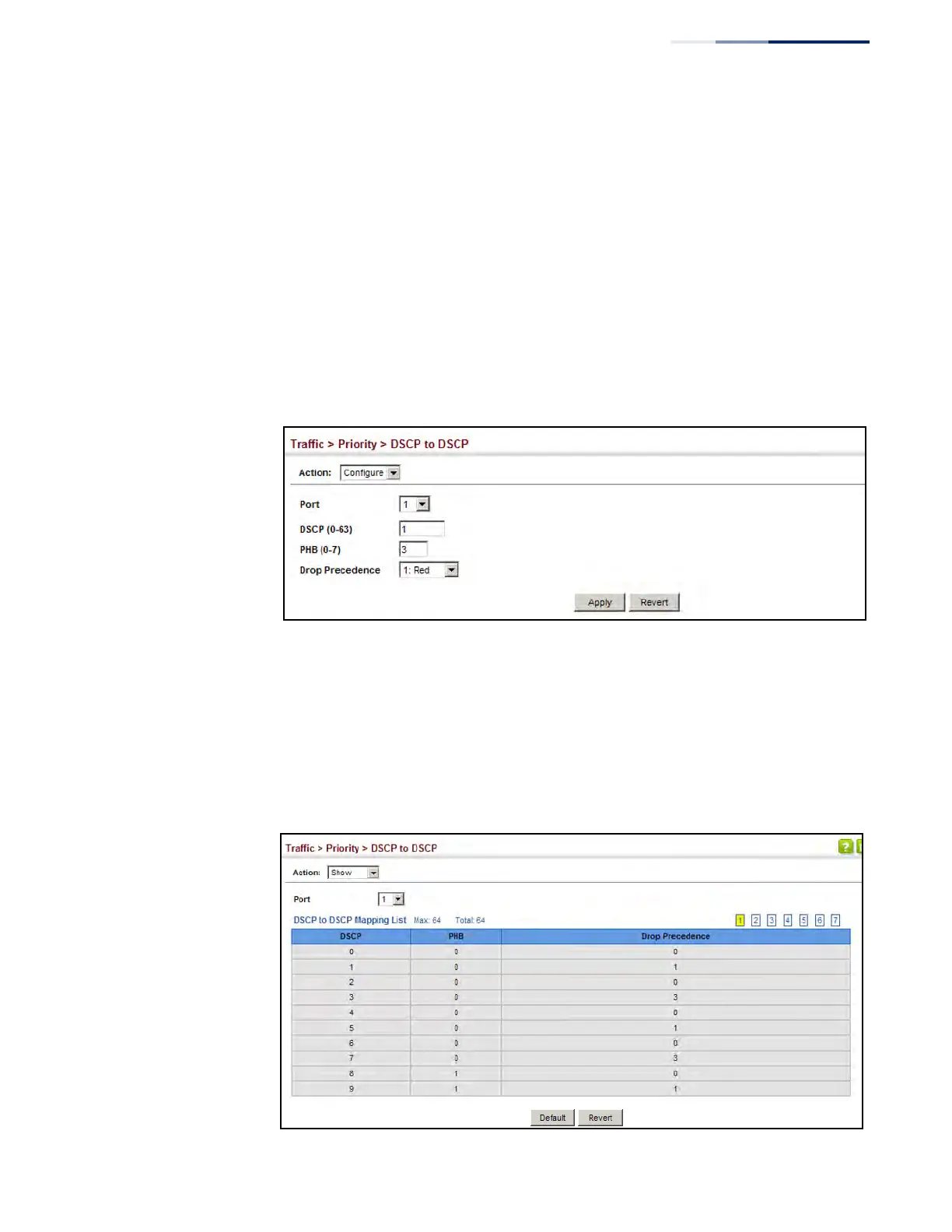

Figure 141: Configuring DSCP to DSCP Internal Mapping
To show the DSCP to internal PHB/drop precedence map:
1. Click Traffic, Priority, DSCP to DSCP.
2. Select Show from the Action list.
3. Select a port.
Figure 142: Showing DSCP to DSCP Internal Mapping
