Chapter 10 | Quality of Service
Configuring a Class Map
– 259 –

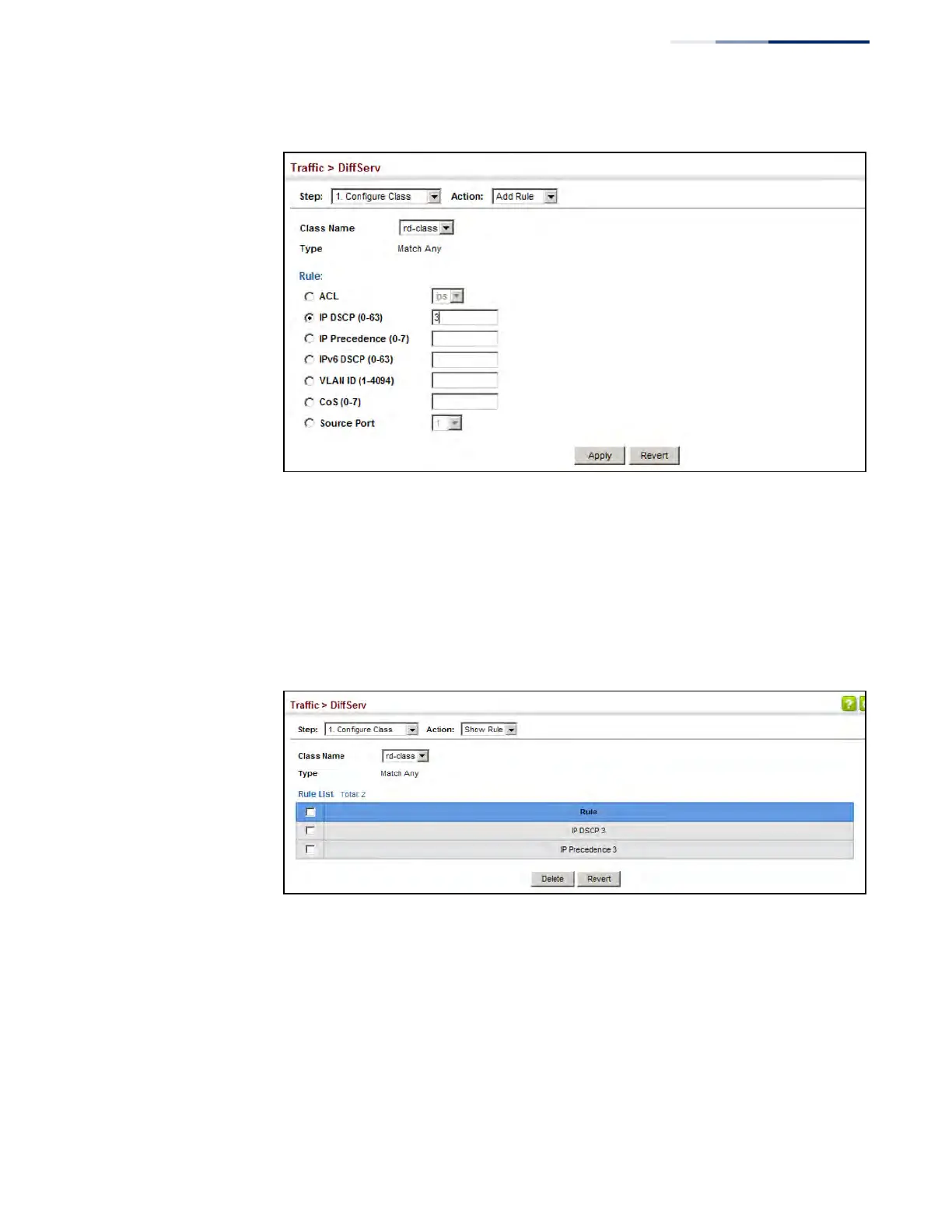

Figure 147: Adding Rules to a Class Map
To show the rules for a class map:
1. Click Traffic, DiffServ.
2. Select Configure Class from the Step list.
3. Select Show Rule from the Action list.
Figure 148: Showing the Rules for a Class Map
