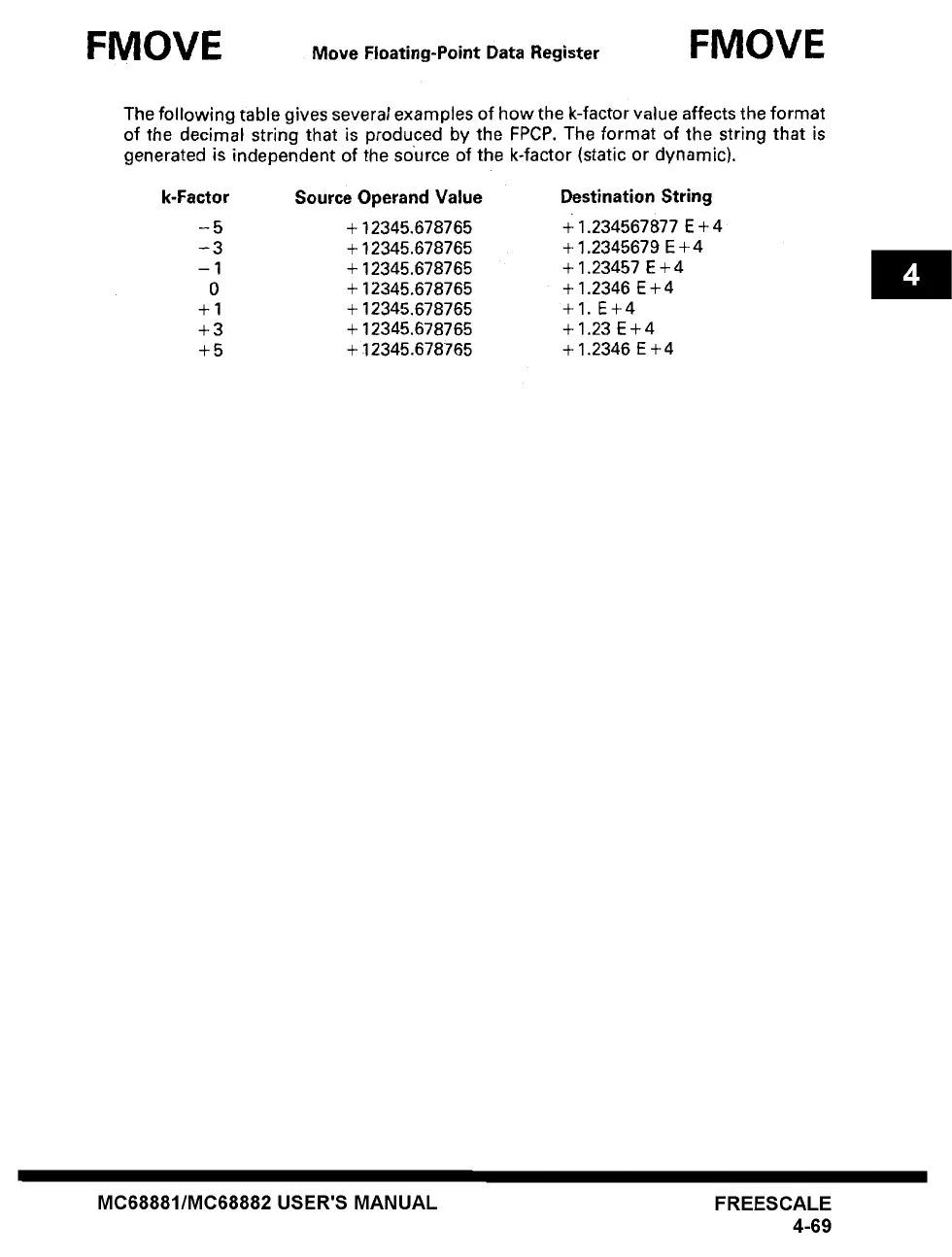

FMOVE Move Floating-Point Data Register FMOVE
The following table gives several examples of how the k-factor value affects the format
of the decimal string that is produced by the FPCP. The format of the string that is
generated is independent of the source of the k-factor (static or dynamic).
k-Factor Source Operand Value Destination String
- 5 + 12345,678765 + 1.234567877 E + 4
-3 + 12345.678765 + 1.2345679 E +4
- 1 + 12345.678765 + 1,23457 E +4
0 + 12345.678765 + 1.2346 E + 4
+ 1 + 12345.678765 + 1. E +4
+ 3 + 12345.678765 + 1.23 E + 4
+ 5 + 12345.678765 + 1.2346 E + 4
MC68881/MC68882 USER'S MANUAL FREESCALE
4-69
