Freescale Semiconductor MC68881 - Conditional Predicate Field Encoding Summary

4
I'

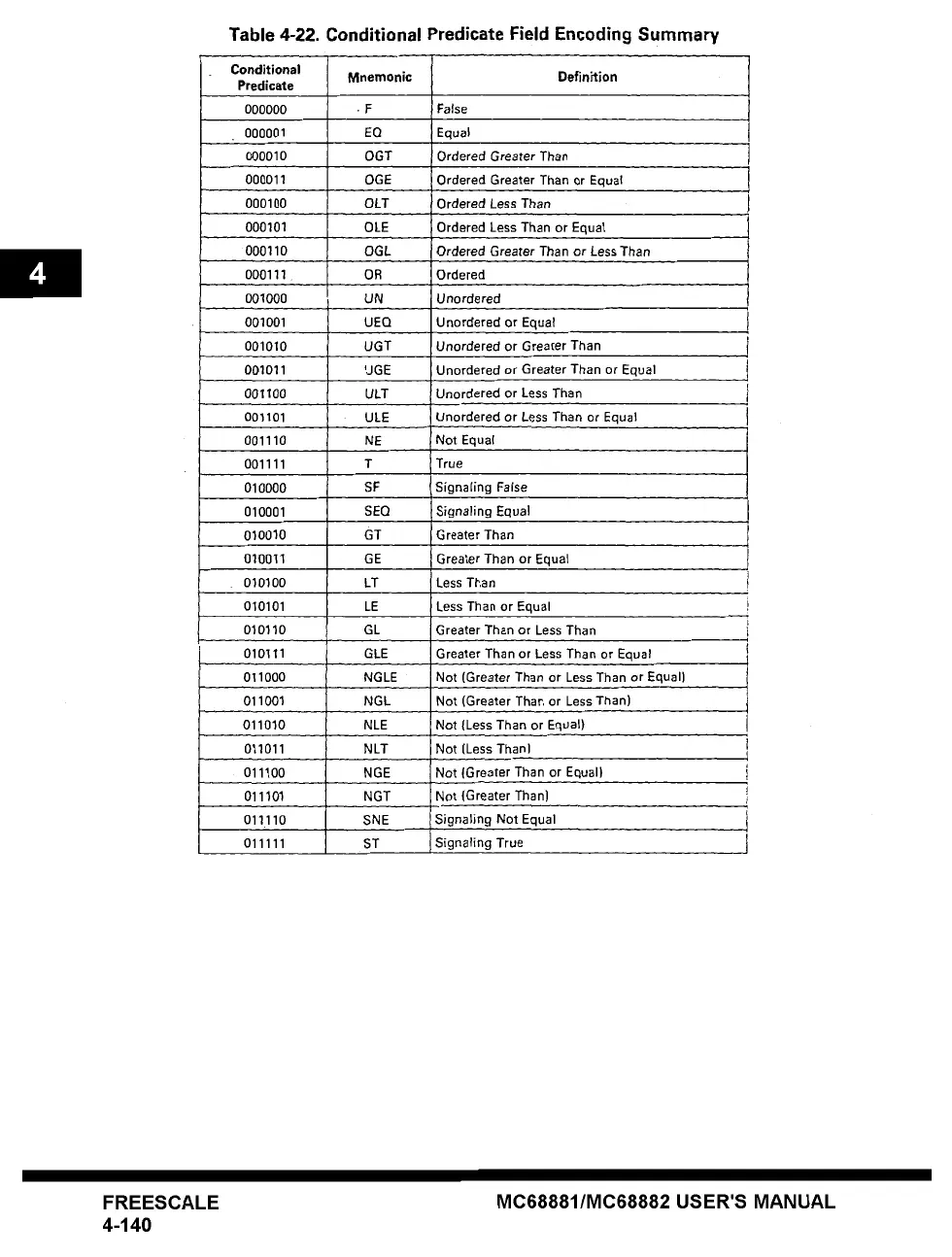

Table 4-22. Conditional Predicate Field Encoding Summary
Conditional
Mnemonic Definition
Predicate
000000 • F False
000001 EO Equal
000010 OGT Ordered
Greater Than
000011 OGE Ordered Greater Than or Equal
000100 OLT
Ordered Less Than
000101 OLE Ordered Less Than or Equal
000110 OGL Ordered
Greater Than or Less Than
000111 Ordered
001000
Unordared
001001 Unordered or Equal
001010
Unordered or Greater Than
001011 Unordered or Greater Than or Equal
001100 Unordered or Less Than
001101 Unordered or Less Than or Equal
001110 Not Equa(
001111 True
010000 Signaling False
010001 Signaling Equal
010010 Greater Than
010011 Greater Than or Equal
010100
010101
010110
010111
011000
011001
011010
011011
011100
011101
011110
011111
OR
UN
UEQ
UGT
UGE
ULT
ULE
NE
T
SF
SEQ
GT
GE
LT
LE
GL
GLE
NGLE
NGL
NLE
NLr
NGE
NGT
SNE
ST
Less
Than
Less Than or Equal
Greater Than or Less Than
Greater Than or Less Than or Equal
Not
(Greater Than or Less Than or Equal)
Not (Greater Than or Less Than)
Not (Less Than or Equal)
Not (Less Thanl
Not (Greater Than or Equal)
Not (Greater Than)
Signaling Not Equal
Signaling True
