Replacing Consumables
81
Maintenance
3

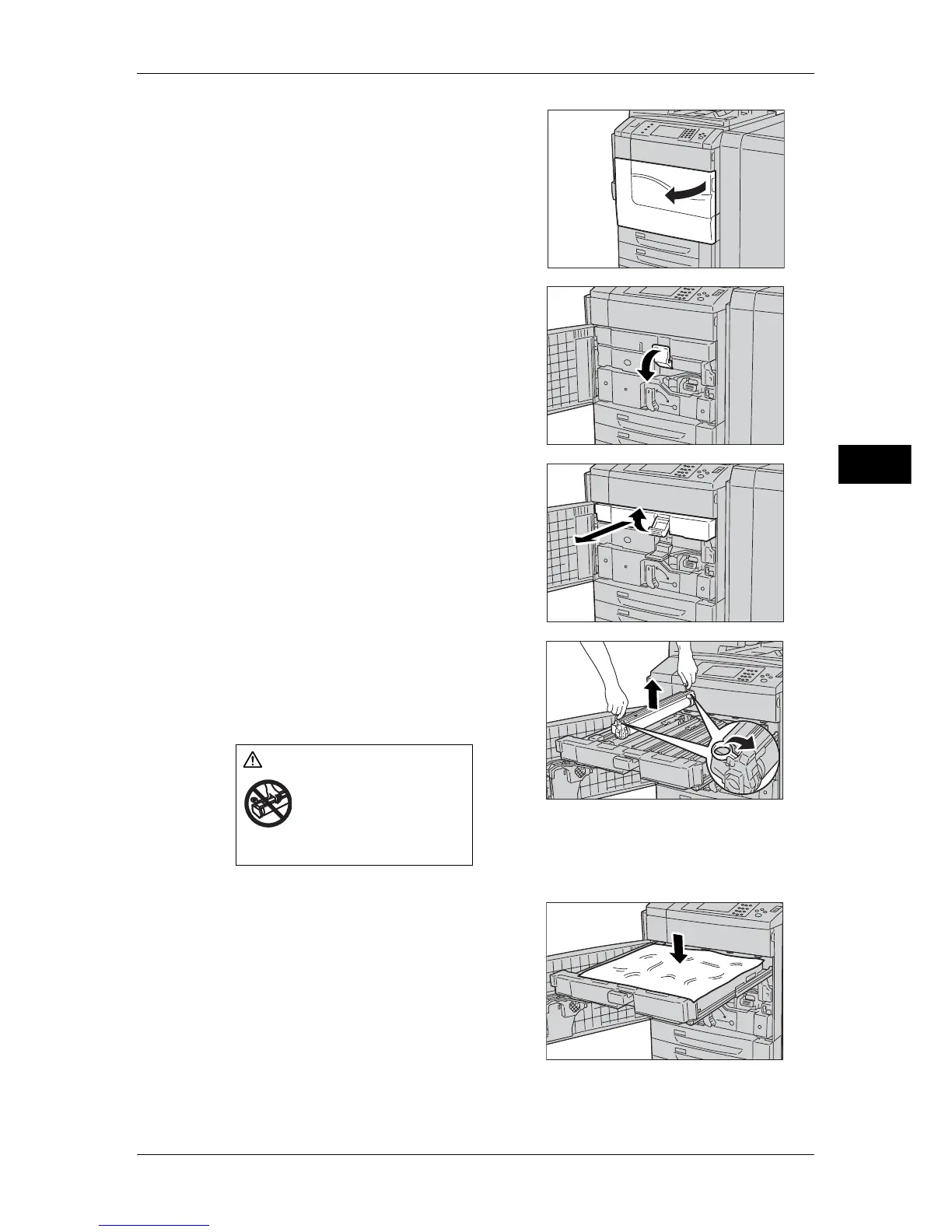

2 Make sure that the machine has stopped
before opening the front cover.
3 Pull down the R1-R4 lever.
4 Grip the handle of the unit and pull it out.
Important • Make sure to pull out the unit slowly.
When the unit is being pulled out with
force, the unit may possibly hit your knees
or other parts of your body causing
injuries.
5 Remove the drum cartridge upward while
holding rings provided at the both ends of
the drum cartridge.
Note • The following example shows how to
replace drum R2.
6 Place the replaced drum cartridge into the empty container.
7 Place a black sheet supplied with the new
drum cartridge onto the unit.
Important • Make sure to place the black sheet.
Otherwise, it may affect image quality.
CAUTION
Be sure to insert your
fingers into the rings
when lifting the drum
cartridge up.
