Basic Operation 44

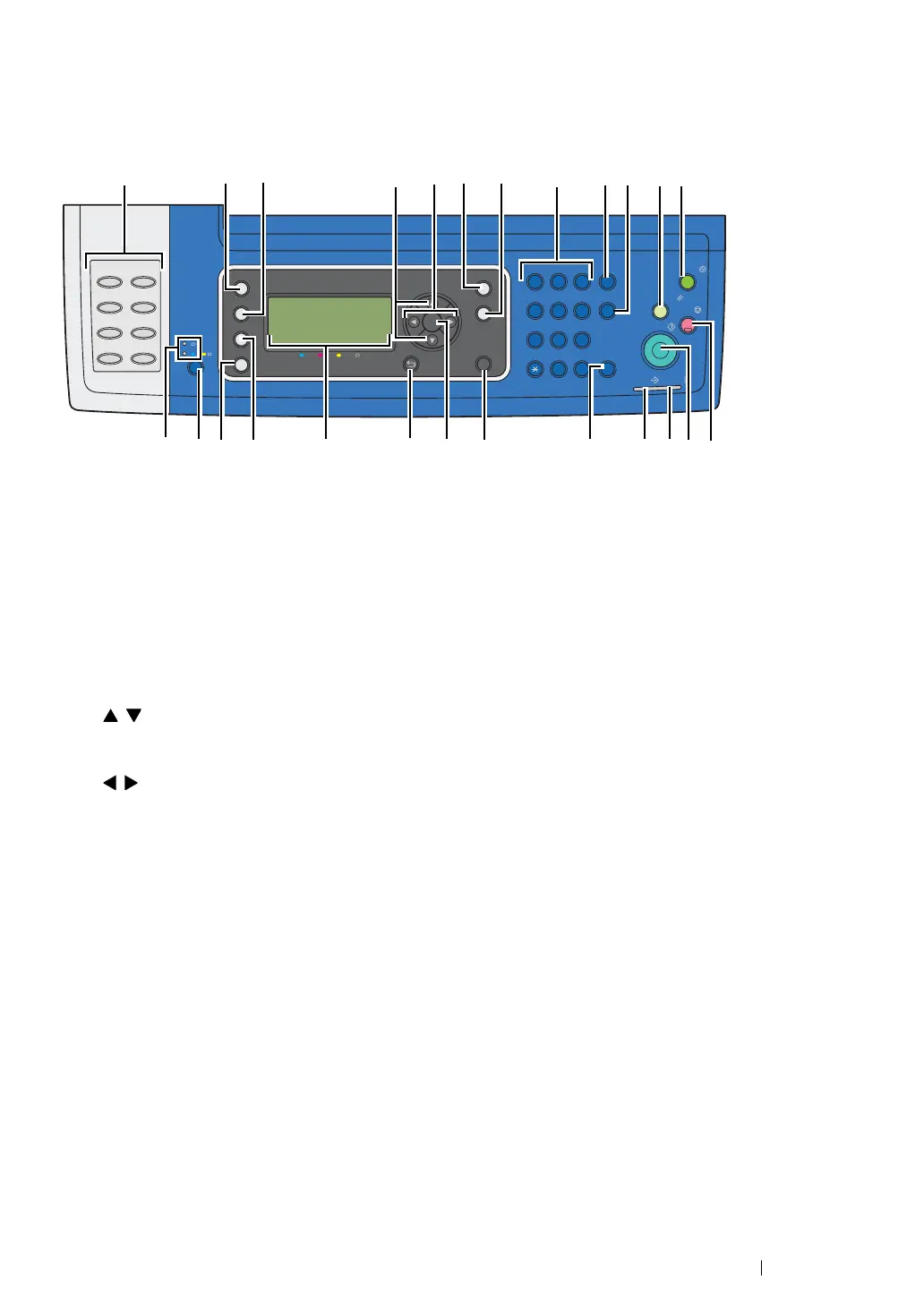

îš„ Operator Panel
The operator panel has a 168 × 64 dots liquid crystal display (LCD), light-emitting diodes (LED),
control buttons, one touch dial buttons and numeric keypad, which allow you to control the printer.
1 One Touch Dial buttons
• Calls up the stored Fax number registered in the Phone Book. The first eight fax numbers in
the Phone Book are assigned to the buttons in row order, starting from the left top corner.
2 Copy button
• Moves to the top level of the Copy menu.
3 Scan button
• Moves to the top level of the Scan menu.
4 buttons
• Moves a cursor or highlight up or down.
5 buttons
• Moves a cursor or highlight left or right.
6 Job Status button
• Moves to the top level of the Job Status menu.
7 System button
• Moves to the top level of the System menu.
8 Numeric keypad
• Enters characters and numbers.
9 Redial / Pause button
• Re-dials a telephone number.
• Inserts a pause during dialing.
10 Speed Dial button
• Calls up a stored telephone number.
11 Clear All button
Energy Saver
Clear All
Stop
Start
ErrorData
Redial /Pause
Speed Dial
@:./
GHI
PQRS
-_~
TUV
WXYZ
DEF
ABC
MNO
JKL
System
Address Book
Job Status
Back
Copy
Scan
Print
Fax
4
3
2
1
6
5
87
OK
C
0#
987
4
6
5
1
3
2
2223 21 1314151617181920
32 4 5 6 7891011121
2425
