479 Maintenance

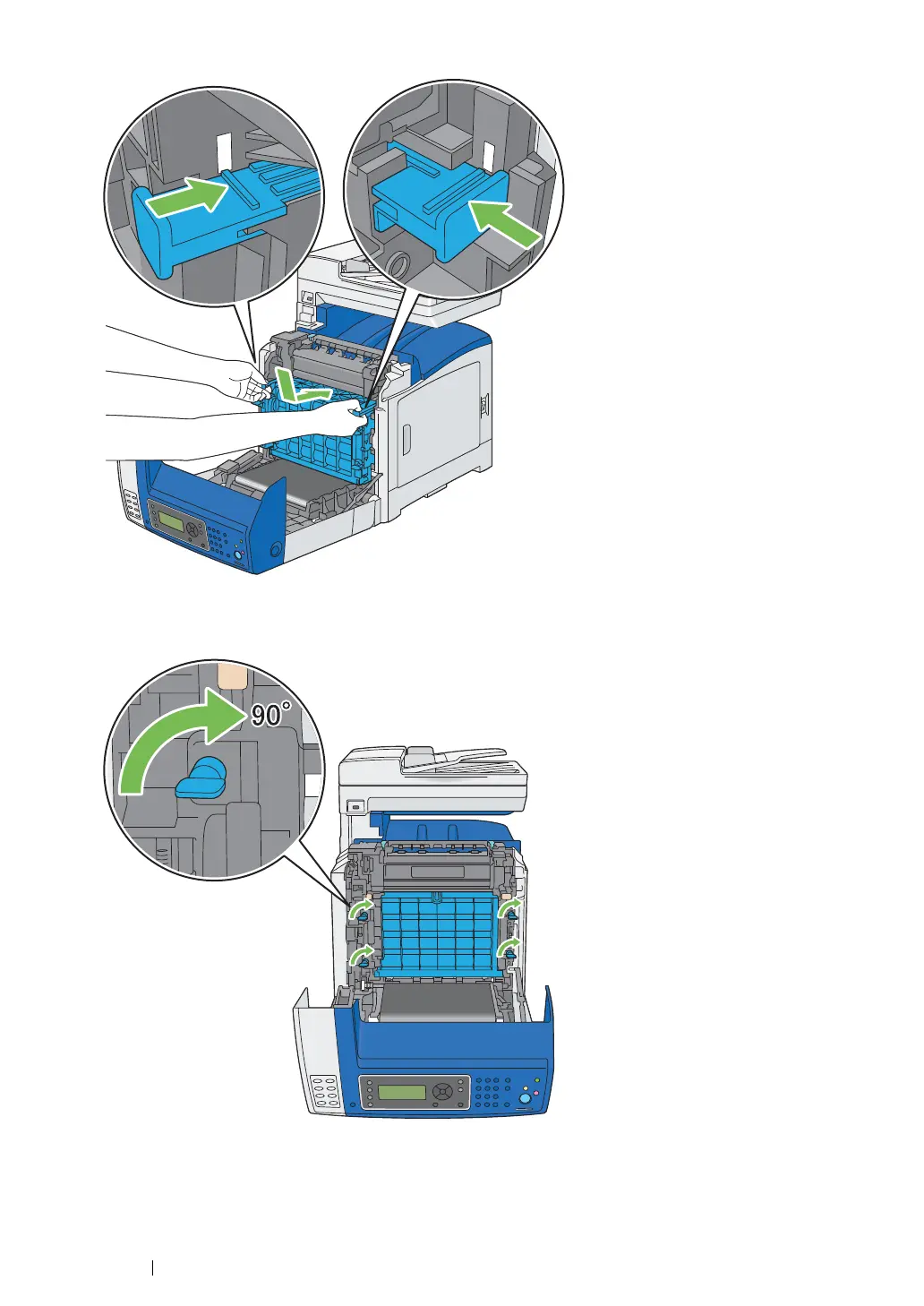

6 Turn the four drum cartridge lock levers 90-degrees clockwise to lock the drum cartridge.
7 Remove the front protective cover from the drum cartridge.
IMPORTANT:
• Ensure that you do not hit the belt unit when removing the front protective cover.
