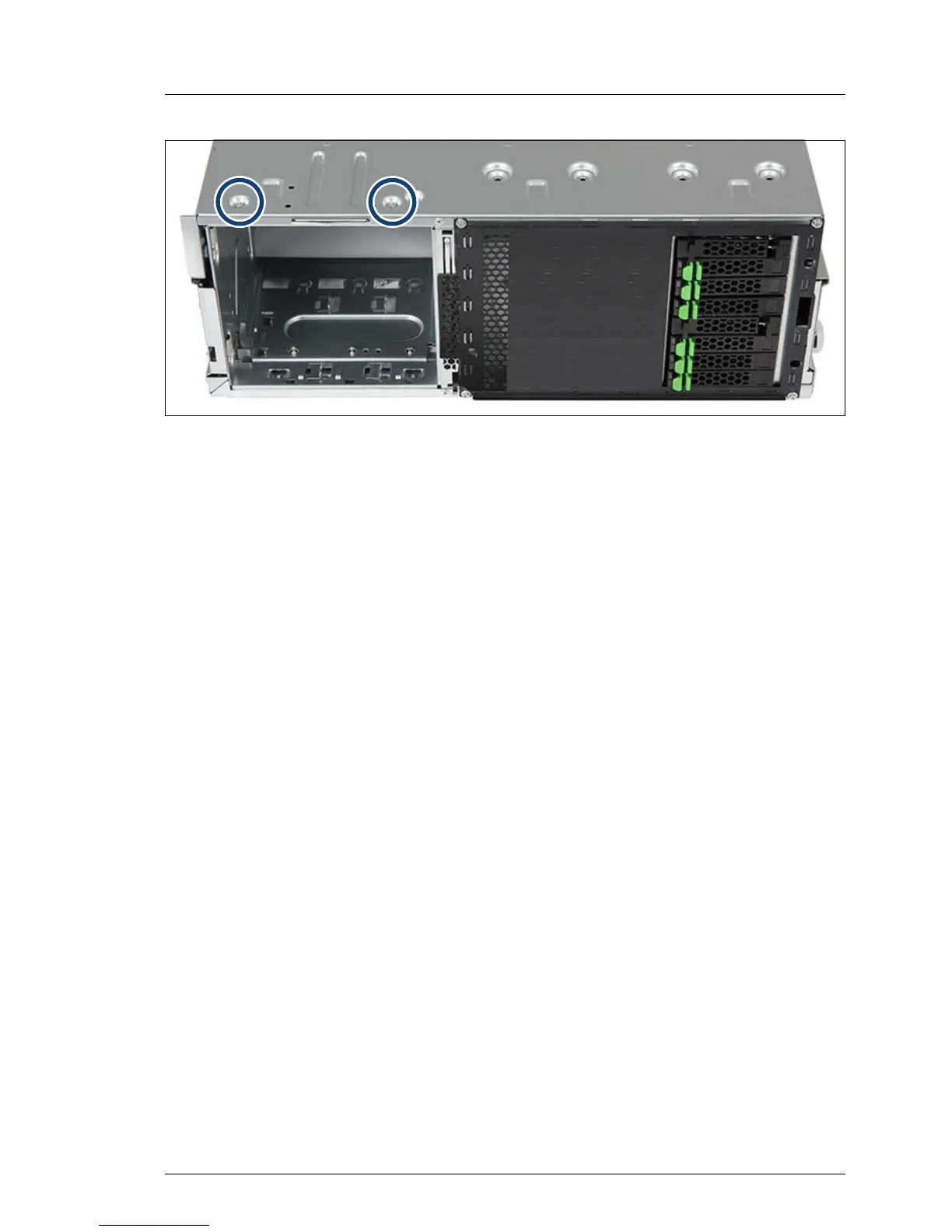

Figure 198: Securing the accessible drive cage (B)
Ê Carefully turn the server upside down.
I At least two people are needed to turn over a fully equipped server.
Remove hard disk drives and power supply modules in order to
facilitate the task.
Ê Secure the accessible drive cage with two screws.
I Note the correct screw positions: The screw hole on the right that has
been used in the tower configuration remains empty.
Reinstalling accessible drives
Ê Reinstall the front panel (rotated by 90 degrees) as described in section
"Installing the new front panel module" on page 251.
Ê Reinstall all accessible drives into their original bays (rotated by 90
degrees). Reconnect the cables (see section "Cabling plans" on page 303).
Ê Reinstall all accessible drive filler covers and front covers as described in
section "Installing accessible drive dummy covers" on page 243.
Preparing the intrusion switch
Ê Remove the intrusion switch module as described in section "Removing the
defective intrusion switch cable" on page 311.
I It is not necessary to disconnect the intrusion switch cable from the
system board.
