Ê Attach a rubber bumper to the front intrusion switch and reinstall the
intrusion switch module as described in section "Installing the new intrusion
switch cable" on page 314.
Assembling the rack front cover

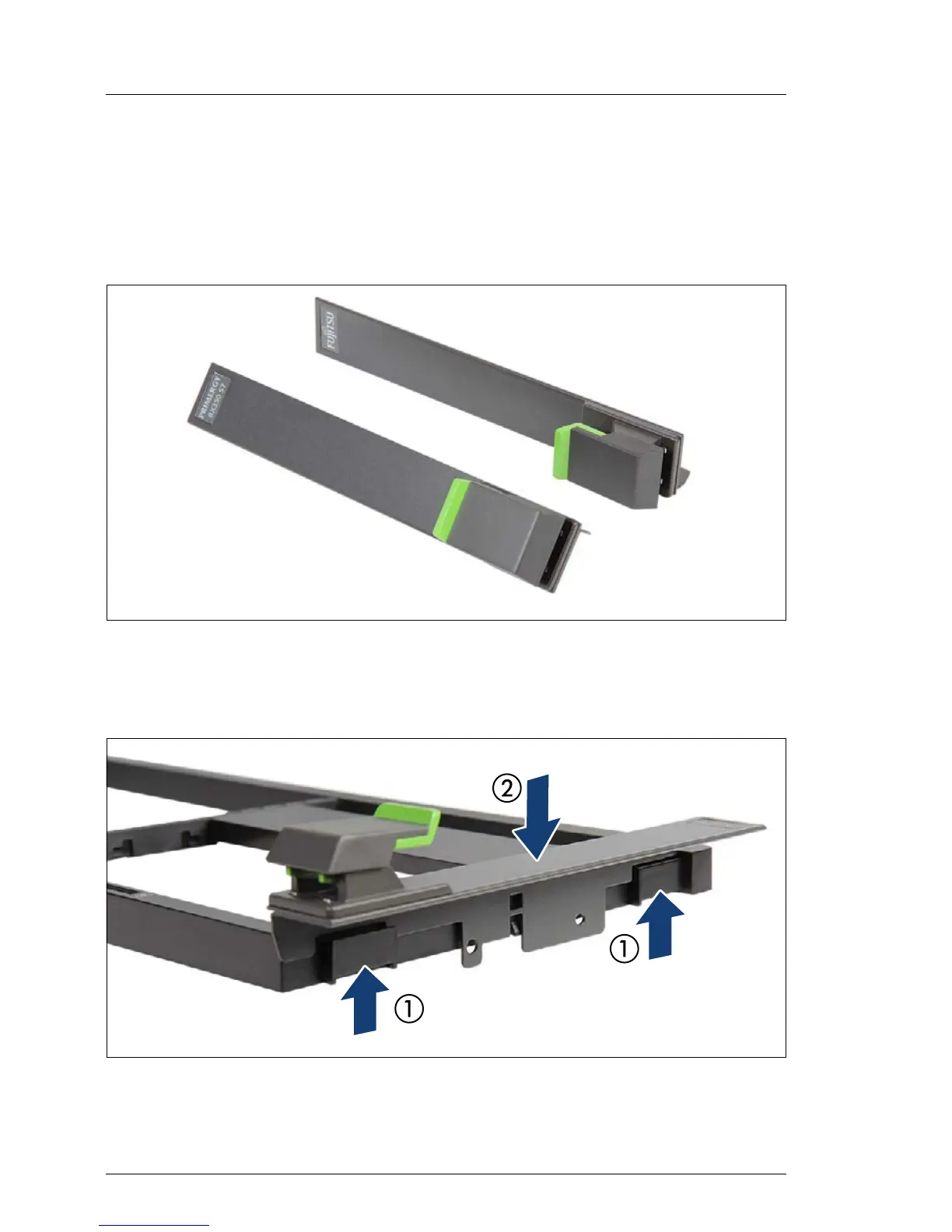

Figure 199: Rack mounting brackets with quick release levers
I The rack front cover consists of a plastic frame and two rack mounting
brackets with quick release levers.
Figure 200: Installing rack mounting brackets
Ê Fit the rack mounting bracket on the two hooks on the rack front bezel (1).
