Fujitsu Server PRIMERGY TX1330 M1 User Manual

308 Upgrade and Maintenance Manual TX1330 M1
Cabling

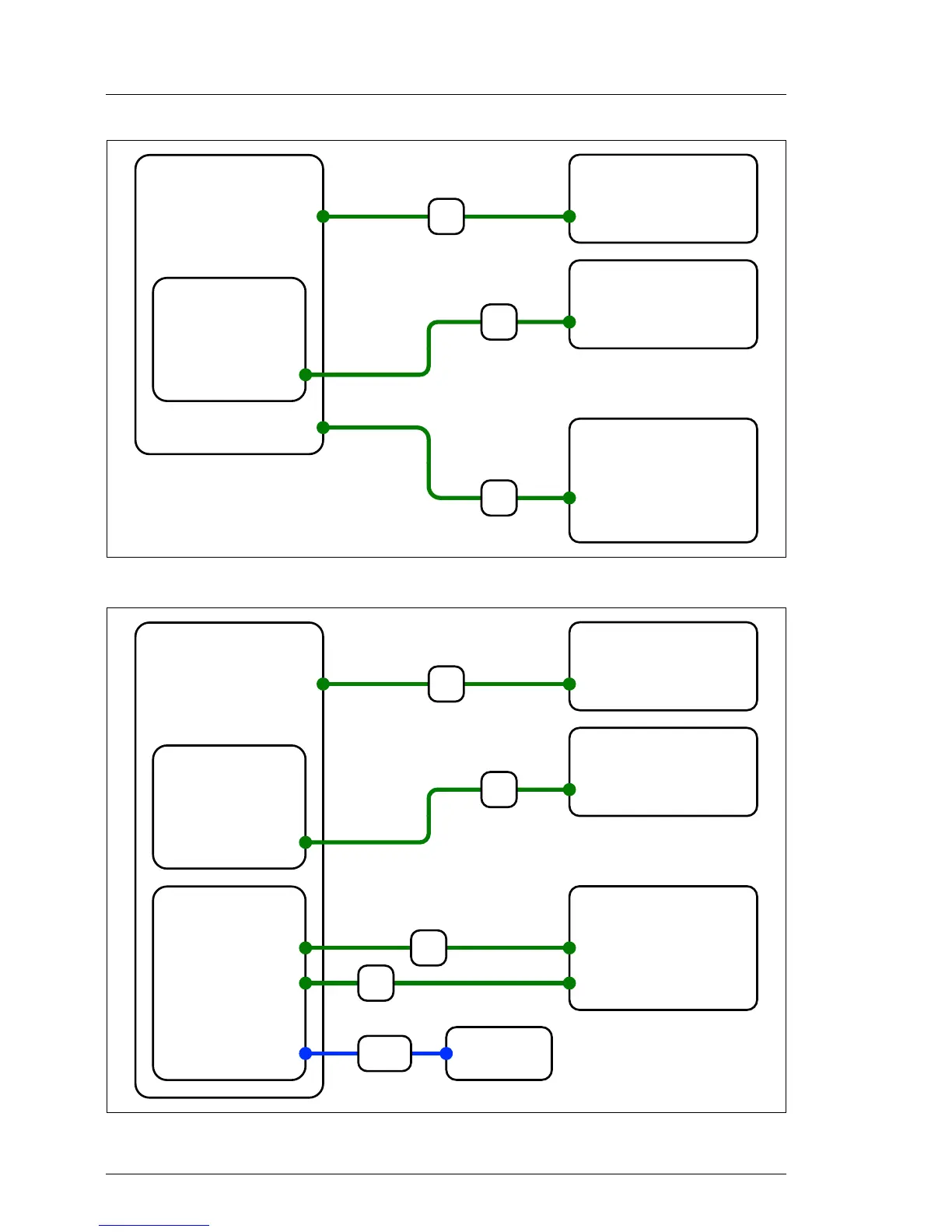

Figure 207: SATA cabling with up to 4 HDDs
Figure 208: SATA cabling with 5 to 8 2.5-inch HDDs
System Board D3239
USB1 DAT
USB1 AUX
MLC SATA 1-4
Drive Bay 2
USB Backup Drive
Drive Bay 3
SAS Backup Drive
X1
X1
HDD Backplanes
3.5” HDD BP
1x 2.5” HDD BP
MLC 2
MLC 1
SAS Controller
Slot 3
/ 2
6
12
13
System Board D3239
USB1 DAT
USB1 AUX
Drive Bay 2
USB Backup Drive
Drive Bay 3
SAS Backup Drive
X1
X1
HDD Backplanes
2.5” HDD BP 2
2.5” HDD BP 1
MLC 2
MLC 1
SAS Controller
Slot 3
/ 2
MLC 2
MLC 1
BBU / FBU
SAS Controller
Slot 4
(Boot)
BBU / FBU
6
6
12
13
9 / 10
