CHAPTER 7: PROTECTION GROUPED PROTECTION ELEMENTS
D90
PLUS
LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL 271
Source
Range: LINE (SRC 1), BKR 1 (SRC 2), BKR 2 (SRC 3)
Default: LINE (SRC 1)
This setting selects the signal source for the neutral overvoltage protection element.
Pickup
Range: 0.000 to 1.250 pu in steps of 0.001
Default: 0.300 pu
This setting specifies the neutral overvoltage pickup level in per-unit values.
Curve
Range: Definite Time, FlexCurve A, FlexCurve B, FlexCurve C
Default: Definite Time
This setting selects whether the neutral overvoltage element provides a time-delayed
operating characteristic versus the applied voltage (FlexCurves A, B, or C) or is used as a
definite time element.
Pickup Delay
Range: 0.00 to 600.00 seconds in steps of 0.01
Default: 1.00 seconds
This setting specifies the minimum operating time of the neutral overvoltage element.
This setting applies only if the
Curve setting is “Definite Time.”
Reset Delay
Range: 0.00 to 600.00 seconds in steps of 0.01
Default: 1.00 seconds
This setting specifies the minimum reset time of the neutral overvoltage element.
Block
Range: any FlexLogic operand or shared operand
Default: Off
Assertion of the operand assigned to this setting blocks the neutral overvoltage
element.
Events
Range: Enabled, Disabled
Default: Disabled
This setting enables and disables the logging of neutral overvoltage events in the
sequence of events recorder.

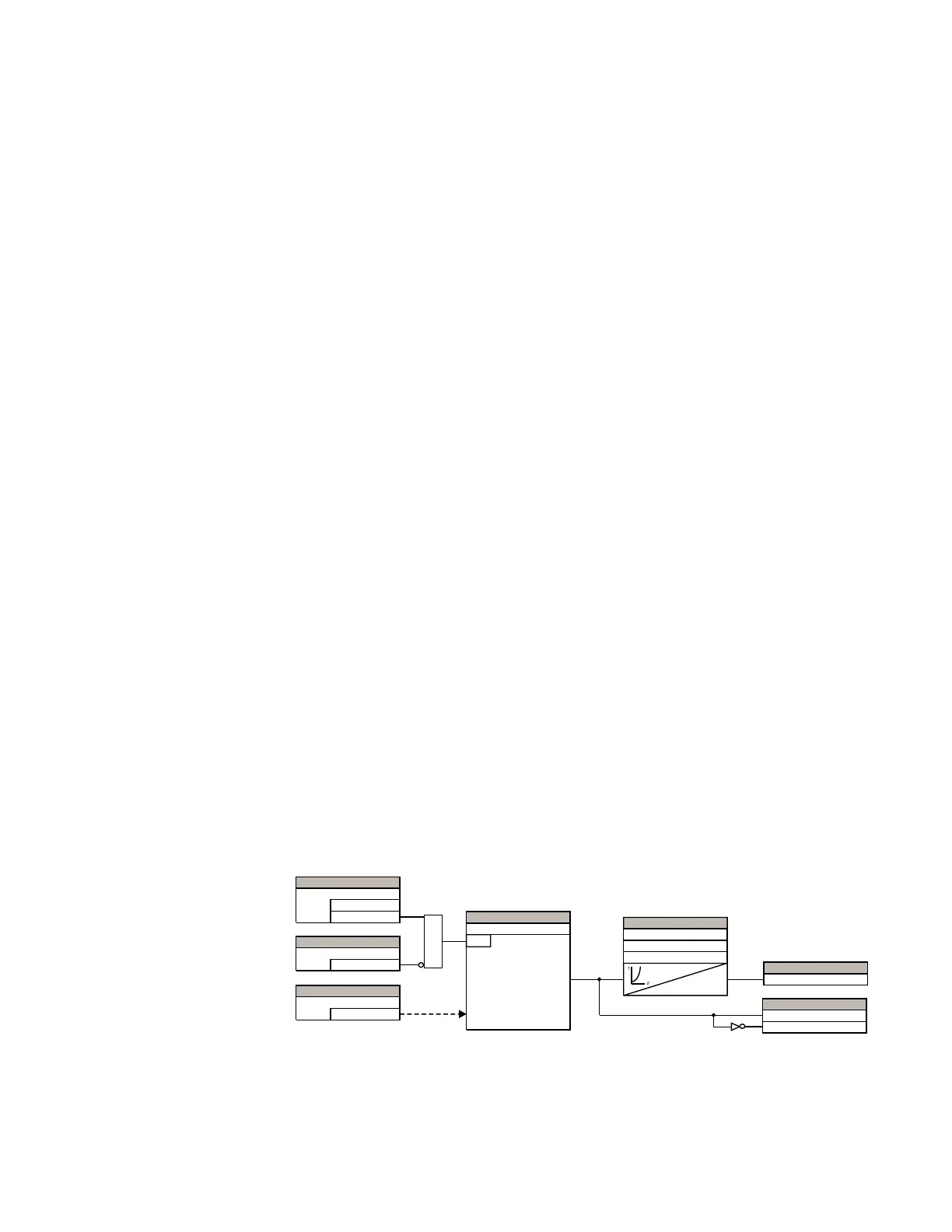

The figure shows the logic for the neutral overvoltage 1 element. The logic is similar for all
neutral overvoltage elements.
Figure 233: Neutral overvoltage logic
$&'5
$1'
9B 3LFNXS
6(77,1*
'LVDEOHG 
(QDEOHG 
)XQFWLRQ
6(77,1*
2II 
%ORFN
6(77,1*
9B
6RXUFH
9BLV]HURVHTXHQFHYROWDJH
6(77,1*
3LFNXS
581
6(77,1*
&XUYH
7
3.3
7
567
5HVHW'HOD\
3LFNXS'HOD\
)/(;/2*,&23(5$1'6
1(875$/2923
1(875$/293.3
1(875$/29'32
)/(;/2*,&23(5$1'
