CHAPTER 12: LOCAL INTERFACE MIMIC DIAGRAM EDITOR
D90
PLUS
LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL 595

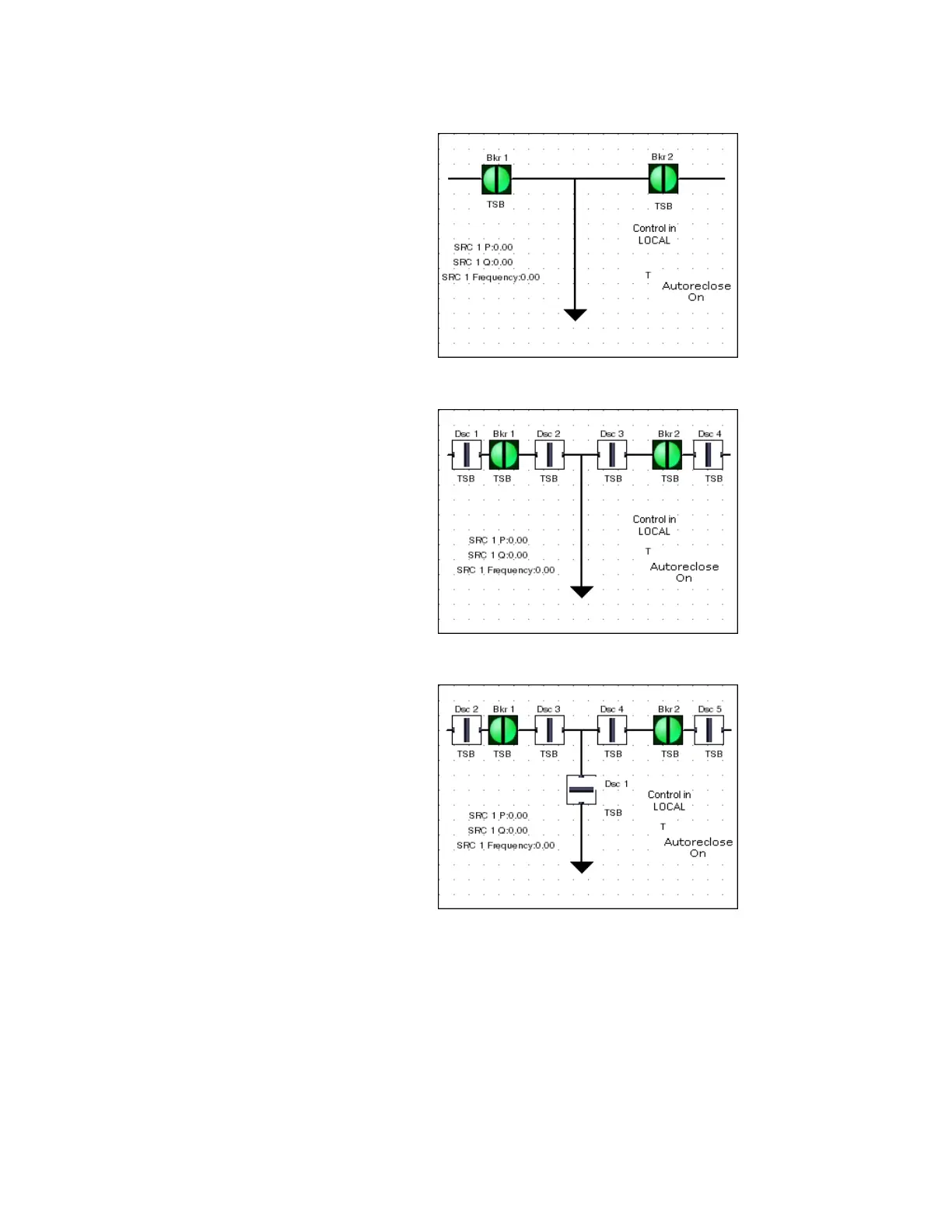

Figure 524: Pre-configured mimic diagram 1 (breaker-and-a-half scheme)
Figure 525: Pre-configured mimic diagram 2 (breaker-and-a-half scheme with breaker
disconnects)
Figure 526: Pre-configured mimic diagram 3 (breaker-and-a-half scheme, with breaker
and line disconnects)
Figure 527: Pre-configured mimic diagram 4 (breaker-and-a-half scheme, with breaker,
