596 D90

PLUS

LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL

MIMIC DIAGRAM EDITOR CHAPTER 12: LOCAL INTERFACE

line, and ground disconnects)

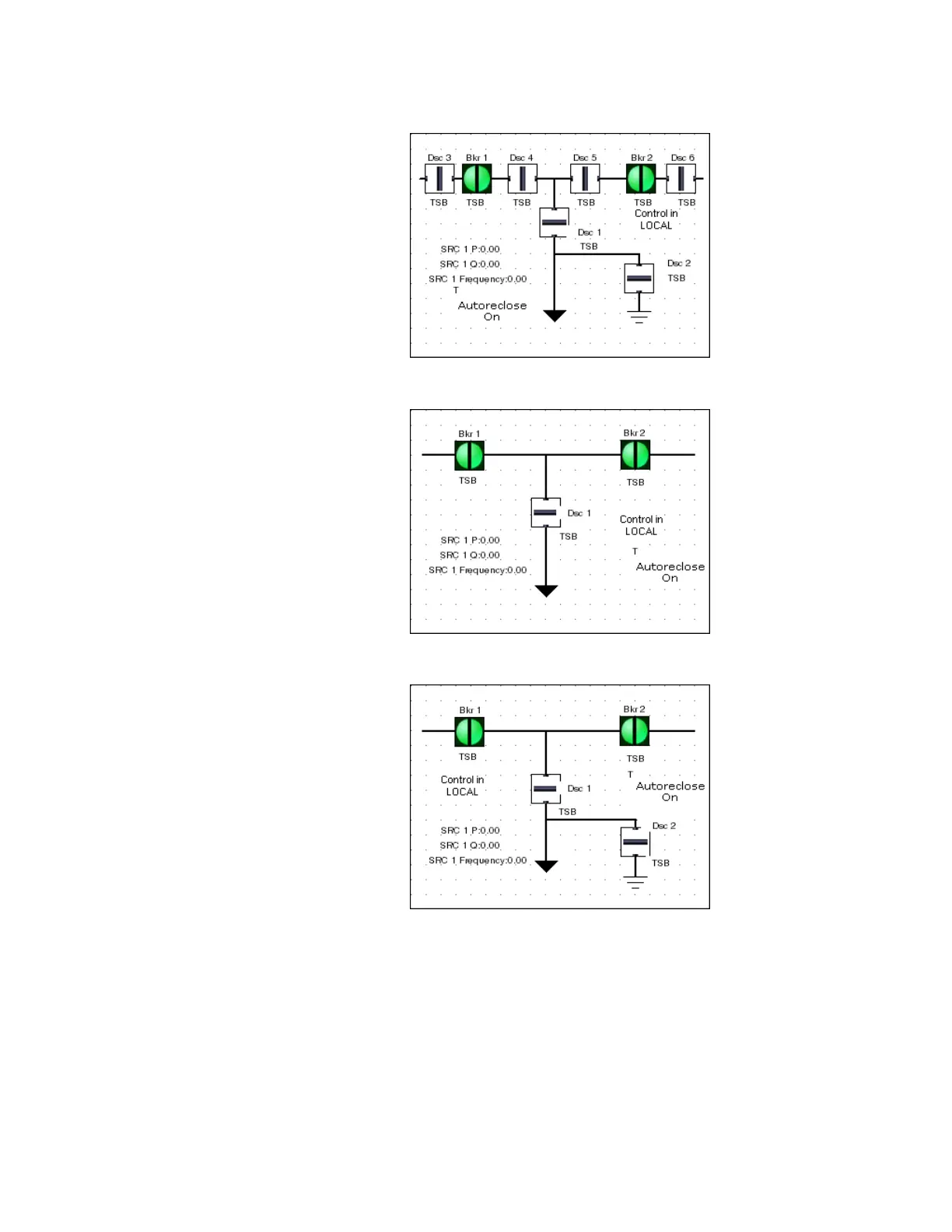

Figure 528: Pre-configured mimic diagram 5 (breaker-and-a-half scheme with line

disconnect)

Figure 529: Pre-configured mimic diagram 6 (breaker-and-a-half scheme with line and

ground disconnects)
