LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 5 - Page 5-37

5-8-2 System Checkout Procedure (cont’d)

13.)Wait until following screen displays.

14.)Configuration is complete.

15.)Close the Service Platform.

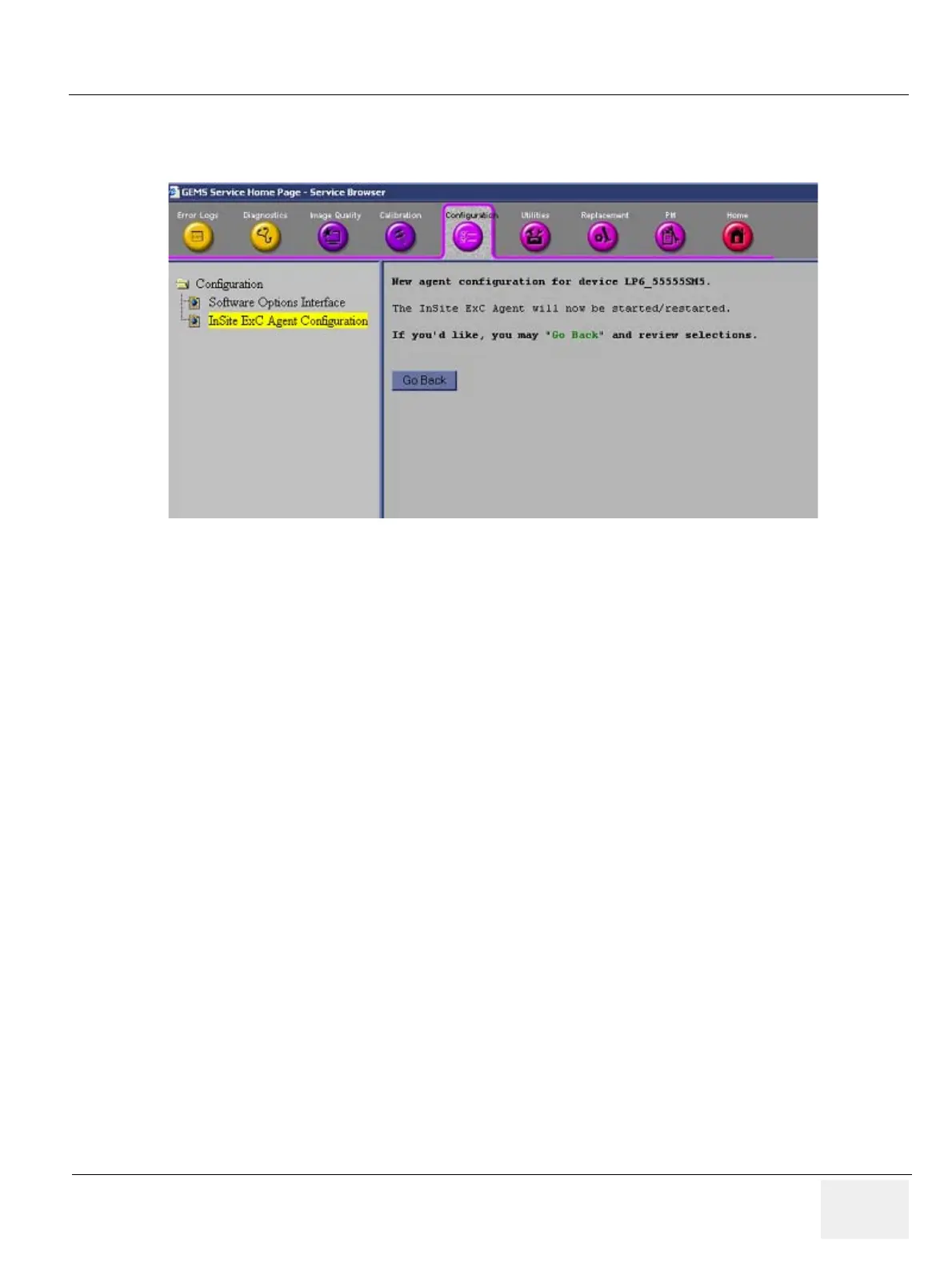

Figure 5-38 Configuration done
