LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 8-4 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY

8-2-1-2 Removal procedure (cont’d)

3.) Disconnect power cable and DVI cable.

4.) Unscrew 2 screws(5177684, HSH M5x20 WHT) to separate 17" LCD monitor.

5.) Unscrew 3 screws to remove the 17" LCD rear cover.

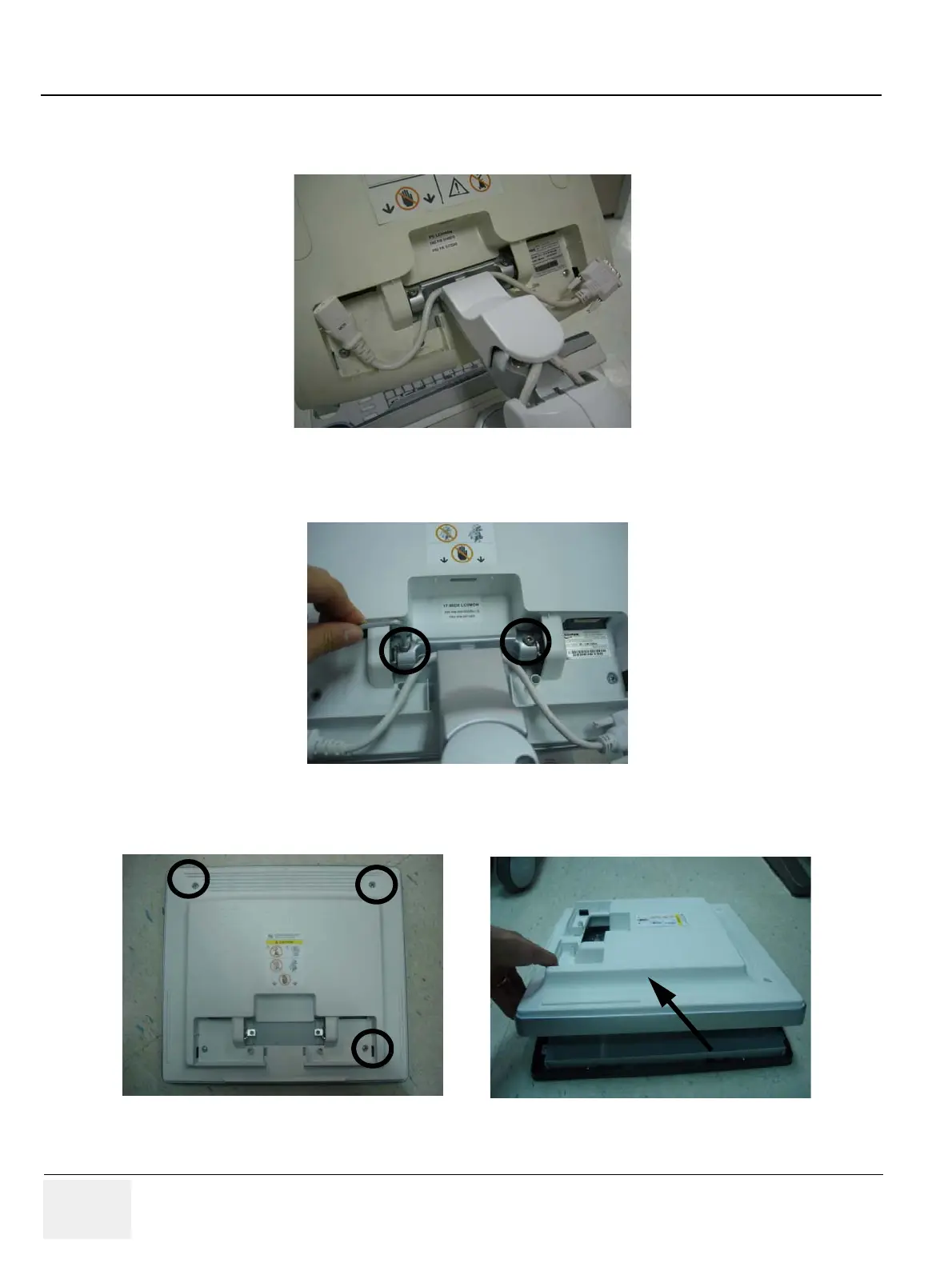

Figure 8-3 Disconnecting power cable and DVI cable

Figure 8-4 Separating the 17" LCD monitor

Figure 8-5 Removing the 17" LCD rear cover
