GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 8 - Page 8-5

8-2-1-2 Removal procedure (cont’d)

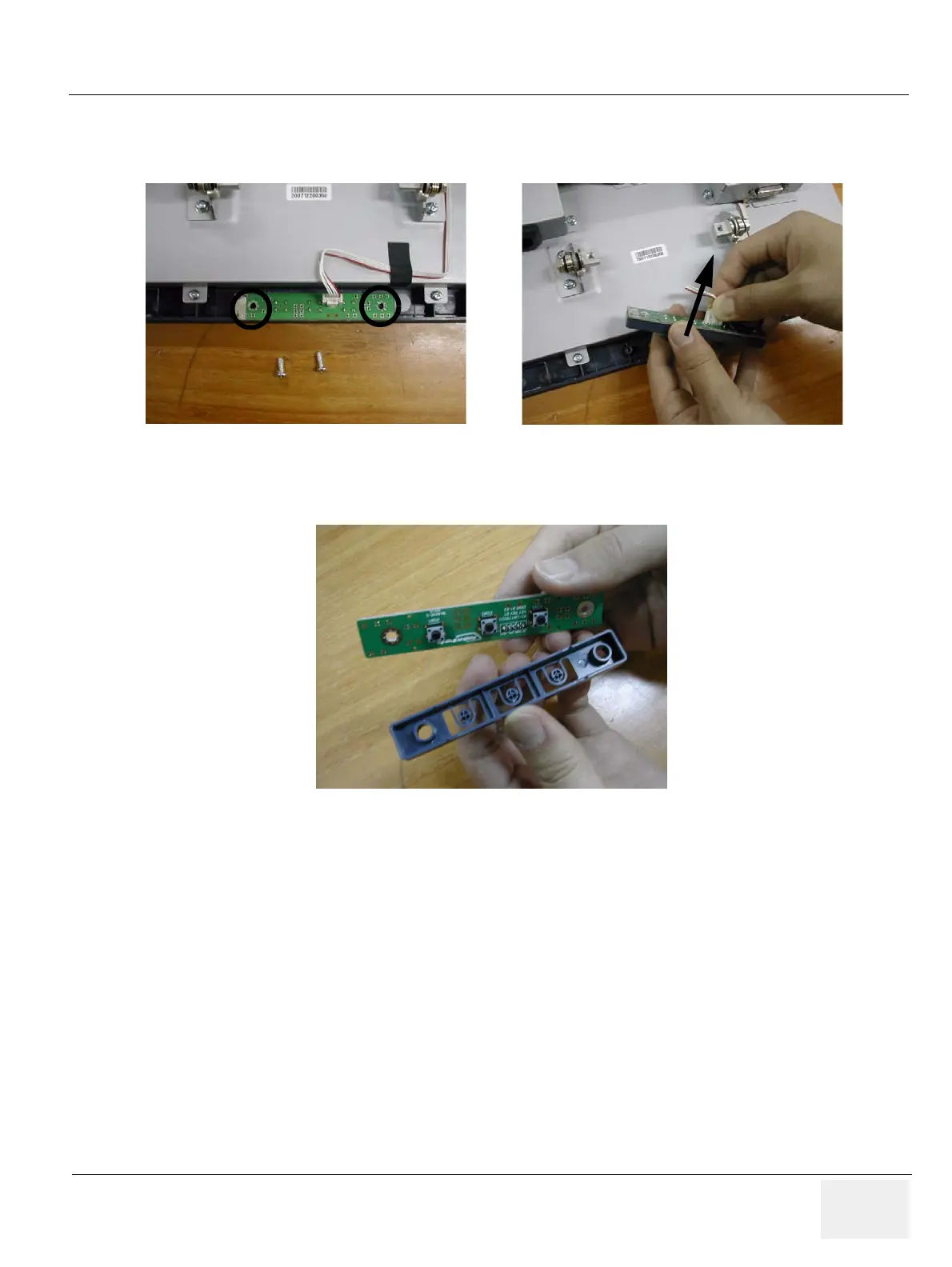

6.) Unscrew 2 screws to remove the OSD key assy and disconnect the connect.

7.) Separate the 17" LCD tact knob from the OSD key assy.

Figure 8-6 Separating the OSD key assy

Figure 8-7 Separating the 17" LCD tact knob
